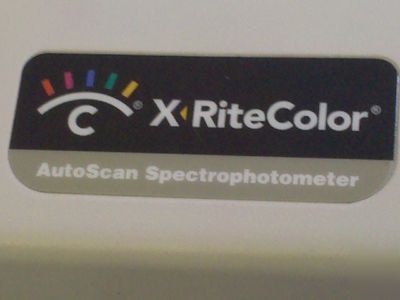

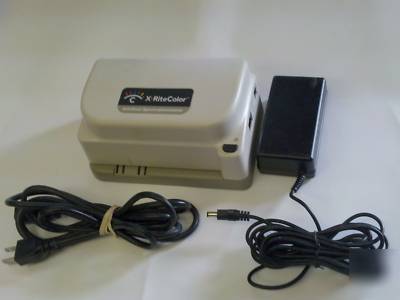

X-rite autoscan spectrophotometer DTP41 free shipping
Removed from running print shop. Money Back Gaurantee!!
Provides single-button operation and automation for fast, accurate results. It measures 480 color patches in under five minutes! Just connect the DTP41 to your Macintosh, IBM, or SGI computer, print a test image from your color management or calibration software, and scan it with the DTP41 to maintain consistent, accurate color levels from day to day.
INSTRUMENT SPECIFICATIONS
Measurement Geometry: 45 /0 per ANSI/ISO 5-4 (IT2.17) (Reflection)
180 /0 per ANSI/ISO 5-2 (IT2.19) (Transmission)
Spot Size at Sample: 1.8mm (.070 in) in scan direction, 2.5mm (.097 in) wide
Light Source: Gas Pressure @ 2850 K
Spectral Sensor: DRS Technology, 24 point engine, 31 point reporting
Spectral Range: 400nm to 700nm
Illuminant Types: A, C, D50, D55, D65, D75, F2, F7, F11, & F12
Standard Observers: 2 & 10
Response Type: Status T, E, I, A, M, & Others
Measurement Time: Approx. 0.25 seconds per patch (7mm patches)
Reflection Measurement (DTP41 & DTP41/T)
Inter-instrument Agreement: 0.3 E cmc avg typical (avg, based on 12 BCRA tiles)
Measurement Range: 0.00D to 2.50 D; 0 to 160% R
Repeatability on White: 0.2 E max; 0.01D max
Linearity: +/- .01D or 1%
Inter-instrument Agreement: 0.02D or 2% typical, 0 to 3.0 D
Measurement Range: 0.00D to 5.00 D; 0 to 110% T
Repeatability: 0.01D or 1% 0 to 3.5 D (Visual)
Calibration: Calibration strip for Reflection
Environmental: +10 (50 F) to +40 C (104 F) operating,
30% to 85% RH non condensing
Power Required: 12v DC, Universal 100-240VAC Adapter; 50/60Hz
Dimensions: Height: 88mm (3.45 in); Width: 184mm (7.25 in); Depth: 114mm (4.5 in)
Weight: 890g (1.96 lb) , with /T option 1090g (2.40 lb)
