> Lantronix xport / xport pro breadboard adapter 2.54MM
Lantronix xport / xport pro breadboard adapter 2.54MM

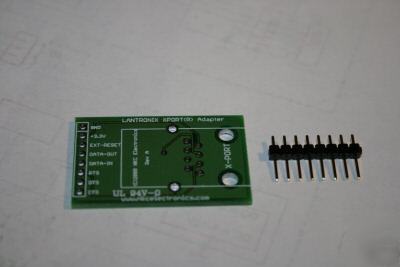

Picture of the adapter with the XPORT Module
Lantronix XPORT to breadboard Adapter
XPORT is Lantronix's Embedded Ethernet Device Server (XPORT PRO is the new version with 32-bit CPU and Linux OS). It has a special footprint that makes it difficult to use a standard 0.1 inch (2.54mm) protoboard or breadboard. This adapter exposes all XPORT signals to a standard 0.1 inch (2.54mm) spaced single in-line header.
a) XPORT / XPORT PRO soldering footprint on board
b) 0.1 inch (2.54mm) spaced header for breadboard or protoboard connectivity
XPORT / XPORT PRO device not included.
Lantronix XPORT / XPORT PRO Adapter PCB
RequirementsLantronix XPORT, Soldering iron, solder and soldering skills.
