454101 arm dev tools kit with jtag ice rdi
New ARM Development Tools Kit for Philips ARM LPC22xx
The ARM LPC22xx series is Philips newest released ARM controller:
http://www.semiconductors.philips.com/markets/mms/products/microcontrollers/key_solutions/32bit/index.html
The 16/32-bit LPC22xx family is based on a 1.8V ARM7TDMI-S core operating at up to 60 MHz together with a wide range of peripherals including multiple serial interfaces, 10-bit ADC and external bus options. These controllers are designed for use in a range of applications including industrial control, automotive, medical, connectivity and any other general purpose embedded application requiring high performance and low power consumption in a cost-effective package. The software development tools, please refer to:
http:// /markets/mms/products/microcontrollers/support/development_tools/tools_by_family/arm7tdmi2200/
The listed item is a LPC22xx development / evaluation tools kit.
News: the item will come with a CD included some soure code (Schematics, porting uCOS-II, drivers, test program, sample program....). But for reference only, sorry for no any guarantee or supporting on software. Added on 10th, Mar.

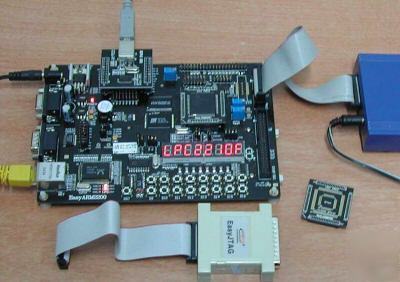

See what you'll got on the board:
1. ARM LPC2210F, CPU-Pack type, attached a bare PCB for you adapting to another LPC22xx CPU.
2. ROM: 16MB Flash SST39VF160, 24WC02 E2PROM.
3. RAM: 4MB SDRAM ISSI IS61LV25616AL.
4. Display: 8-digit LED 7-seg, 8 LED lamps, LCD Module interface( Toshiba T6963C, 240 x 128 dots, this LCD module will listed in my Store).
6. IDE/GPIO interface, 16/8 bit Peripheral Bus.
7. CF_Card interface with CF_Card connector.
7. LAN interface by RTL8019AS.
8. Modem interface by SP3243EEA.
9. RS232 / SPI / I2C interface.
11. CAN interface(LPC2292, LPC2294 only)
12. 20pin JTAC interface, easyJTAG adaptor attached.
13. USB Pack by Philips PDIUSBD12.
14. Self-test/Demo program in the ROM.
The item includes: Main Board PCB, CPU Pack, USB Pack, Bare CPU Pack PCB, EasyJTAG Debug Tools, Doc/Driver/Source CD.
Power: DC 9V 300mA, Standard Jack, AC/DC adaptor not included.
Please ask me if you interested and have questions.
1. Fixed US$20 S/H cost for an international registered air-mail (By HongKong Post, it takes about 1-3 weeks dependently).
2. To an US address, I'll use SpeedPost/EMS with tracking no., US$30 for US, AU, JP, takes 3-5 days.
3. US$30 for CA, UK, FR, GE, IT etc, if you select SpeedPost/EMS, takes 3-5 days. Please ask me for others place or you can check on: (select Documents; 1kg weight)
http://app1.hongkongpost.com/CGI/speedpost/eng/rate/step1.jsp
The winner must pay me in 2-days. Thanks for visiting.
