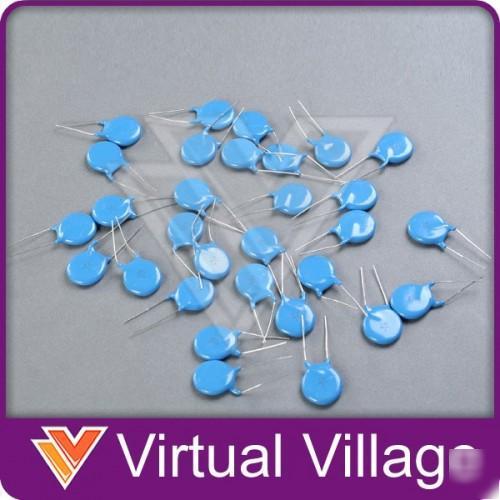

30X 6KV 10000PF high voltage ceramic disc capacitors hv
30X 6KV 10000PF High Voltage Ceramic Disc Capacitors HV
* Operating temperature: -25 C ~ +85 C
* Dissipation factor: DF 2.0% at 1KHz 20%, 1.0 0.2Vrms
* Capacitance: within specified tolerance at 1KHz 20%, 1.0 0.2Vrms
* Capacitance tolerance : 20%
* Insulation resistance : 10000M min at 500VDC & 1 min electrification
* Dielectric withstanding voltage : 1.5UR for 2 to 5s (charge/discharge current 50mA)
* Disc diameter: 17.36mm (0.68")
* Lead length: 21.4mm (0.84")
* Connectors: through-hole leads
* Usage: high voltage applications that are DC powered
