Allied motion rab series right-angle gearmotors

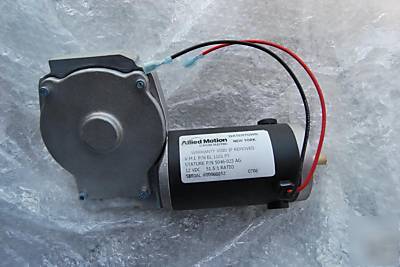

RAB Series Right-Angle Gearmotors
Allied Motion's RAB series of right-angle shaft PMDC gearmotors are designed for battery powered lifting and moving applications such as medical wheelchair and scooter lifts and swivel actuators. These cost effective 3-inch diameter gear motors are available wound for 12 up to 115 VDC with the ability to output up to 77 lb-in (8.7 Nm) continuous shaft torque. This motor is our most powerful and longest life in the RA series.
In addition to lifting applications, the RAB 30 right-angle series is an ideal choice for floor care brush drives, awning extension and retraction drives, welding wire feeders, cable pullers, and similar applications.
* High grade bronze output gear for high strength
* Precision ground steel worm for quiet operation and long life
* Die cast aluminum gearbox for strength and minimum weight
* Class A (105 C) winding insulation Internal brush design for maintenance-free operation
* Oil bath lubrication for extended service life
* Bronze bushing bearing in gearbox; ball bearing on motor
* Compact design to fit restrictive spaces
* 2-pole Endurance PMDC motor
* 3/8-inch diameter output shaft sized for a drive sprocket pinion
* High temperature Class H (180 C) winding insulation
* Weather-proof (IP65) design
* High back-drive torque design
* Synthetic grease lubrication
* Plastic or alloy-steel gearing
* Cartridge style brush holders with replaceable brushes
* Encoder mounting provisions
* Electromechanical holding brake
* 1/2-inch diameter output shaft
* Sprocket or pulley mounted on output shaft
* Specifically designed for lifting applications up to 400 lb (180 kg)
* Choice of winding voltage from 12 up to 115 VDC
* Up to 77 lb-in (8.7 Nm) continuous output shaft power
