10KHZ precision digital lcr bridge d q meter with clip

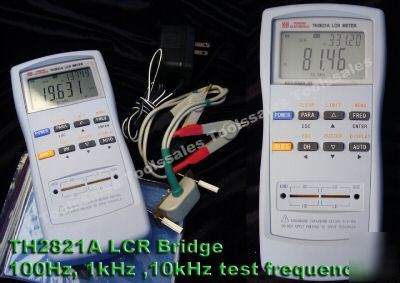

10kHz Precision handheld dual 5 digi Digital LCR Bridge D Q factor Meter with Kelvin clip
This latest TH-2821A ( speical model over our regular TH-2821)
This unit build in test frequency 100,120, 1Khz and the 10kHz,
Teset Level 0.1Vrms 10kHz range
HIGH ACCURACY, HIGH RESOLUTION LCR bridge feature microcontroller with precision analog measurement circuit, Suit able for may application that required testing the LCR component.. Applicable for the following applications such as Capacitor / Inductance characteristic / quality analysis. The meter can perform a selection or sorting of desired / Precise capacitor / Coil / Resistor in preset limited range or Test Unknown capacitor / Coil / Resistor; Finding the "matched" capacitors / Coils / Resistor for circuit design. It also perform the zeroing by OPEN and SHORT circuit with multi-frequency test signal.
Large, DUAL 5 digi multi-data display
3 test frequency range: 100Hz , 120Hz , 1Khz, 10KHz
Wide measurement range Capacitance, Inductance & Resistance
Complete display of parameter: D Factor, Q Factor , relative %
Parallel and series equivalent circuit modes
Data Hold : to freeze the current display value
Alarm Mode : NG, P1,P2,P3 and off modes can be selected
Range Hold for large number of components to improve measuring rate
Sorting & Comparator Function : Built-in 4 bins comparator NG, P1,P2 and P3 limited.
Display Parameters : L-Q , C-D , R-Q and Z-Q
Direct : direct measurement value
120Hz, 1Khz ( 0.3 V rms ( +/- 15% )
Direct , Absolute value, relative %
1 x Special Kelvin component Test lead.
Optional SMD chip Test clip + $ 30
