> New 1" cooper terminator cable fitting - #TMCX3112
New 1" cooper terminator cable fitting - #TMCX3112

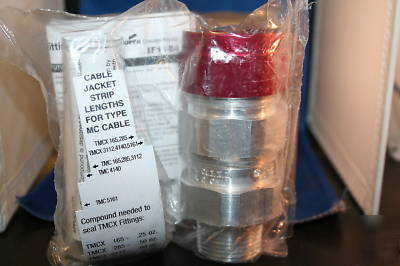

NEW COOPER 1" TERMINATOR CABLE FITTING
Terminator cable fittings are designed for use with the following cables:
Type MC corrugated aluminum, interlocked aluminum and interlocked steel
Terminator cable fittings are installed:
To provide a means for terminating type MC and TC cable at junction boxes, control centers, panelboards and enclosures for motor control and electrical distribution equipment.
* To form a mechanical watertight connection
* To provide ground continuity of cable armor
* Indoors and outdoors in wet and dry locations
* In vertical and horizontal cable runs
* In non-hazardous and hazardous (classified)locations. Both TMC and TMCX series can be used in Class I and Class II, Division 2 locations. TMCX series may be used in Division 1 locations and when a seal is required.
* Quick and easy to install. No disassembly is required for TMC installation.
* Unique stainless steel grounding/retaining spring with copper plate finish provides positive ground continuity and superior pull-out resistance exceeding that required by UL/CSA.
* Neoprene bushing provides a watertight seal.
* Lightweight, corrosion-resistant/copper-free aluminum construction provides long, maintenancefree service life in industrial environments
* Hex design for easy wrenching.
* Compact size for close nesting of cables.
* TMCX fittings are furnished complete with epoxy sealing compound.
* TMCX fittings with sealing chamber have a red colored gland nut for easy identification.
* Body, intermediate body, gland nut, and armor stop insert copper-free aluminum
* Grounding/retaining spring stainless steel
* Slip washer and armor stop reducer nylon
* Cold Shrink Kit EPDM Rubber
* Copper-free aluminum natural
* Stainless steel copper flash
CERTIFICATION AND COMPLIANCES:
* Class III, Div. 1 and 2 (except when used with Tray Cable)
* Article 334, 340, 501-4(b), 502-4(b),
* Class III, Enc. 4 locations
