> Ascan usb ccd handheld barcode bar code scanner reader

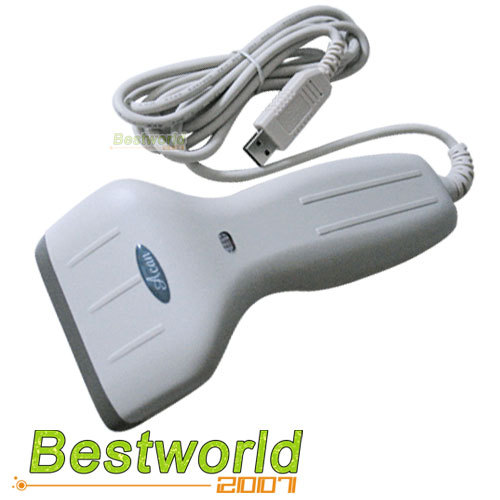

Ascan usb ccd handheld barcode bar code scanner reader
USB 80mm Long CCD BARCODE SCANNER BAR CODE READER 120
High Resolution: 0.1mm (4 mil).
Multiple Interfaces for Enhanced Compatibility
High speed scanning engine: 100 scans/sec.
Equipped with optional nice beeper to confirm successful reads.
Excellent Field Reliability even in a terrible outdoor environment
The most cost-effective and easy-install device on the market
No drivers or special software are needed.
USB Interface, Your Windows must support USB HID device, there is no driver require, but if your system ask for the driver, that means your system is not Fully HID support, we suggest to upgrade to XP or Win2000.
Simply connect to your computer you are ready to read bar codes.
Depth of reading: 0 to 30mm (PCS Value:0.9)
Scan rate: 50/100 scans/sec
CCD resolution: 2048 Pixels
Image Sensor: High resolution Charge Coupled Devices (CCD)
Light Source: Red LED array 660nm
PCS Value: More than 0.3
Resolution: More than 0.1mm (4 mils)
This barcode scanner can read barcode as follows:
Code 11, Code 39, Code 93, Code 128
Working Current (Decoder Built-in): Max. 110-140mA
Stand-by Current (Decoder Built-in): Max. 80mA
Working Environment: 0 - 40 degree Celsius, Humidity: 10%-90%RH
Storage Environment: 10 - 60 degree Celsius, Humidity: 10%-90%RH
Reading Angle: 0 - 90 degree
Delivery time depends on destination and other factors, it may takes up to 20 business days.
1.All my products are 100% money back guarantee.
3.All our product have been checked and packaged in good condition.
4.If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back.
5.If item defective in 3 month, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
6.If item defective after 3 month, you can still send it back to us. We will send you a new one after receiving the defective item.
If you have any questions, please contact us.All emails will be answered within 48 hours .
If you do not receive our reply, please kindly re-sent your email and we will reply you as soon as possible.
