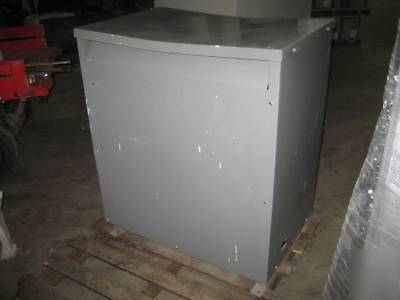

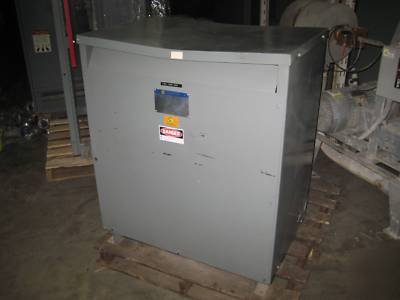

Square d transformer 150 kva 480/208Y/120 150KVA 3 ph y

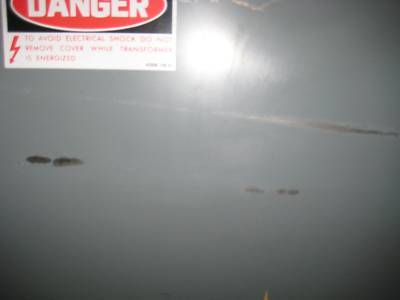

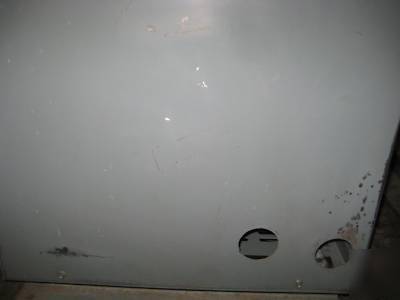

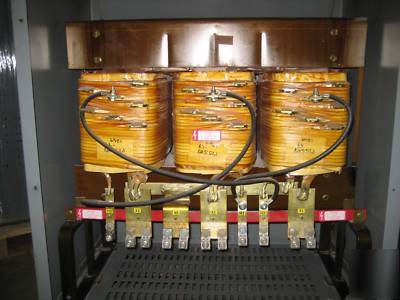

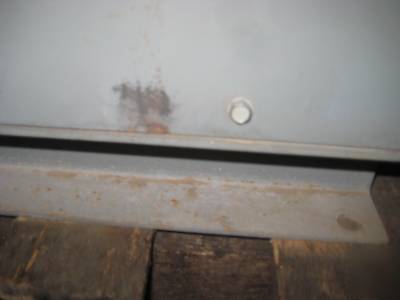

This 3 Phase Transformer is in Good Condition Externally and Great Condition Internally. There are a couple of scratches and white pain drops on it. There is also a bend in the top cover. Please see attached photos.

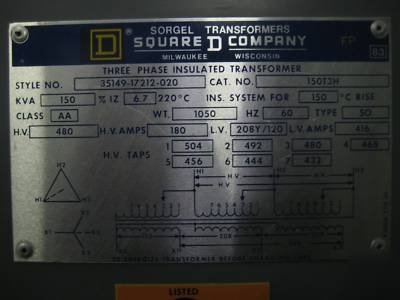

Style No: 35149-17212-020 Cat. No: 150T3H
kVA: 150 % IZ: 6.7 220 Degree C Ins. System For 150 Degree C Rise
Class: AA Wt: 1050 Hz: 60 Type: SO
H.V.: 480 H.V. Amps: 180 L.V.: 208Y/120 L.V.: Amps: 416
36" (Width) x 25" (Depth) x 42" (Height)
