Aa aom and driver for dpss 110MHZ 488-635NM 5W/MM2
MATCHING AA Opto-Electronics LASER MODULATOR MTS110-A3-VIS AND DRIVER AA.MOD.110.C46.1/2K
This is one of the best, if not the best performing AOMs out there with nom transmission at 98% and 90% nom diffraction efficiency. Most sytems out there have an efficiency of 65-75% that is a lot of lost power!
Max power optical desity = 5Watts/mm2 with a 3x5mm window! The AOM was used in a DPSS laser system. But you can also use it for blanking and modulating other lasers.
Included: Driver, AOM, cable for connecting the driver to AOM, and BNC male to BNC male for connection to the driver.
* Optical Input / Output polarizations
* Carrier frequency / Frequency shift
* Diffraction efficiency (with TEM00 beam, M
* Amplitude modulation bandwidth
(Lxlxh) 50.9 x 22.4 x 15.8 mm3 / 50 g
power supply 28VDC, carrier frequency 110MHz, Modulation input 0-5v.

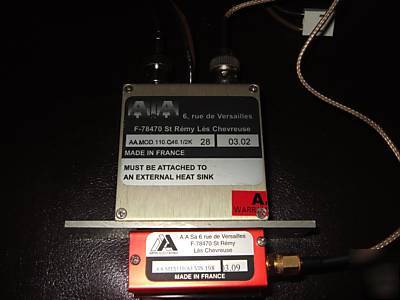

The unit you will get is not the one below, but it is the same make/model and condition there might be small scratches and scuffs on the housing from storage.
