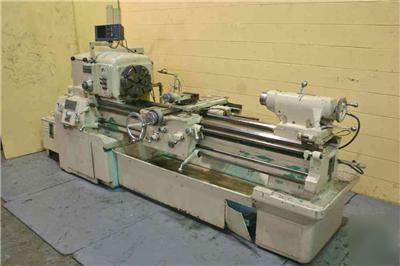

16´´ x 54´´ monarch engine lathe: stock #53458
16 X 54 MONARCH ENGINE LATHE: STOCK #53458
SERIAL ................................. 44922
MODEL .................................. 612
SWING OVER WAYS ........................ 16
SWING OVER CROSS SLIDE ................. 10
DISTANCE BETWEEN CENTERS ............... 54
SPINDLE SPEEDS ......................... (36) 12 TO 1500 RPM
FEEDS .................................. (66) .0013 TO .0821 IPR
THREADING .............................. (66) 2 TO 120 TPI
DIAMETER OF SPINDLE HOLE ............... 2
TAPER ATTACHMENT ....................... YES
SWIVEL COMPOUND ........................ YES
THREAD DIAL ............................ YES
CHUCK .................................. 12 4 JAW
2 AXIS DIGITAL READOUTS ................ YES
SPINDLE FORWARD AND REVERSE ............ YES
COOLANT WITH REMOVABLE CHIP PANS ....... YES
HARDENED WAYS .......................... YES
SPINDLE DRIVE MOTOR, HORSEPOWER ........ 10
