Douglas sd-20 pot, pan and utensil washer, 2003 model

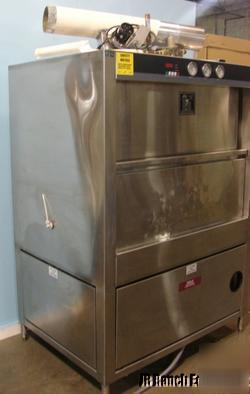

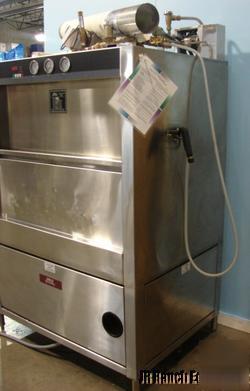

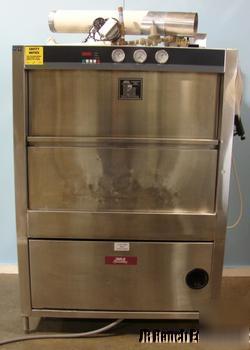

Douglas SD-20 Pot, Pan and Utensil Washer, 2003 Model!
This SD-20 washer is front loading, with a split door design for easy loading and unloading. The top half of the door system rises while the lower half folds down to create a space-saving drain table. It holds 20 full size sheet pans.
WASH TANK: The recirculating wash tank has a 36 gallon capacity, is sloped to drain, and is heated by 208 volt electric immersiion heaters. There is low water protection, automatic fill, and it is thermostatically controlled at 150 F.
WASH TANK FILTER: The wash tank filter is a perforated stainless steel basket type. The double filter system increases effectiveness and ease of cleaning without emptying the wash tank.
WASH PUMP: The wash pump is rated for 120 gallons per minute, at 35 to 45 PSI. It is a closed coupled centrifugal wash pump. It has a 7 1/2 HP motor.
SPRAY ARM ASSEMBLIES: The spray arm assemblies are motor driven, oscillating stainless steel spray arm assemblies, top and bottom, with stainless steel jets and quick release mechanism for easy cleaning and reassembly.
RINSE TANK: The sanitizing rinse tank is stainless steel, with a 10 gallon capacity. The rinse cycle provides 180 to 190 F hot sanitizing rinse. The rinse cycle uses 5 gallons per 27 second cycle.
If you have questions regarding this item please feel free to contact us toll free at (***) 386-6190.
-We present the item as accurately as possible based on the information available to us and our knowledge of the equipment. We do not guarantee the accuracy of this information.
Finance Equipment For Your Business - Click Here
We no longer accept personal or business checks.
* If damage has occurred: 1)Document damage when signing for delivery 2) Keep all packaging materials 3) Photograph damage 4) File a damaged goods claim with freight carrier.
* We will assist you with the freight claim process, but ultimately the consignee is responsible for the claim.
* We do not accept the return of damaged goods refused by the consignee.
* A packaging/crating fee will be charged.
* We will notify you when the item is ready, and at that time pick up of the item can be arranged.
* Purchases being picked up are subject to WI Sales Tax of 5.5%.
* We will assist with loading the equipment into your vehicle/truck/trailer; however we are NOT RESPONSIBLE for the item once it leaves our loading area.
* You are responsible for strapping/securing the item; therefore supplies such as straps, rope, ties, blankets, etc are highly recommended.
* However, if there is an issue, we will be happy to investigate the situation. You must contact us in writing within three days of receiving the equipment to explain the circumstances.
* JR Ranch Equipment, Inc. will not be responsible for labor costs involved with repairs; but parts may be covered within sixty days of receiving the equipment.
* JR Ranch Equipment, Inc. is not responsible for any costs involved with repairs done to the equipment without our prior approval.
* We do not pay for, or reimburse for, the installation of equipment or for equipment to be "checked over" by a professional service.
* The item cost, less 20% restocking fee, will be refunded after the equipment has been returned to us and meets our inspection.
* Refrigeration units are to be used in the recommended ambient temperature as stated by the manufacturer.
* Failure to do so may cause the equipment to function improperly and/or break down. In such a case, we are in no way responsible for the equipment.
* Walk-in refrigeration may require additional parts, refrigerant, and labor to be set up for your operation. JR Ranch Equipment, Inc. is not responsible for the cost of such parts or labor to install them.
