#10161 - seneca falls cnc facing & centering machine

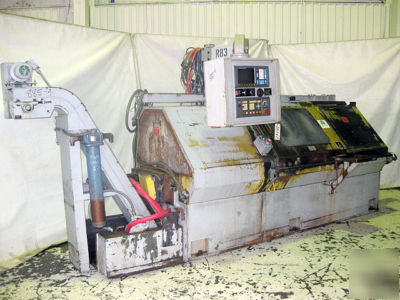

8" x 40" SENECA FALLS MODEL EN-75-40 CNC SPOT FACING & CENTERING MACHINE
Min. part length to be faced & centered 4-1/2" (center + 2 spot face)
Bed way type Replaceable box type
Main spindle drive motors HP 7.5 to 20 HP AC Variable speed
Hydraulic unit floor mounted 30 to 60 Gal. capacity operating pressure 600 to 5000 PSI
Traverse rate 0 to 400 IPM Infinitely variable
Drill spindle nose #40 ANSI or #50 ANSI
Drill spindle speeds 0 to 3,000 RPM Infinitely variable
Mill spindle speeds 0 to 2,000 RPM Infinitely variable
Milling cutter diameter Plunge face mill - 3" max. diameter
(2) Hydraulic self centering vises

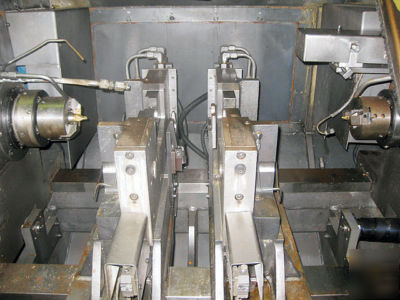

(2) Spot facing & centering CNC heads
