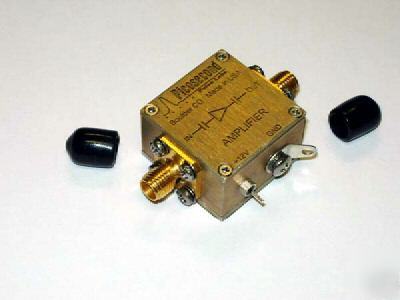

New picosecond lab 5828-107 15GHZ broadband amplifier -
Picosecond Pulse Labs Model 5828 Ultra-Broadband Amplifiers
This Ultra-Broadband Amplifiers is an excellent choice for either pulse or RF applications. It offers a very attractive price/performance ratio. This is AC coupled and is extremely broadband, covering 5 decades from 65 kHz to 15 GHz. It has clean transient responses and smooth gain vs. frequency responses. Gains of 10 dB and risetimes as fast as 22 ps are available. This is stable 50 O amplifiers, and several can be connected in cascade for higher gains. The Models 5828 is ideal for 10 Gb/s systems.
Description: SMA jack (f) jack (f), solder pin on DC
