Mitsubishi PPCSET200 contec pc-CPU686 melsec-q fs
Manufacturer: Mitusbishi Electric/ContecPhotobucket
Item Title: MELSEC-Q PC CPU Module
Model Number: PPCSET200 (PPC-CPU686(MS)-128)
The PC CPU module is a PC/AT compatible personal computer that can be incorporated into the MELSEC-Q Series manufactured by Mitsubishi Electric Corporation.
* Capable of processing information and control data seamlessly by the combination of the MELSEC-Q Series PLC CPU module for sequence control and the PC CPU module for information processing.
* Integrating the major features of the personal computer in a compact unit fit in two slots in the MELSEC-Q Series base unit.
* Employing a low-power consumption, high-speed CPU of Intel Mobile Celeron 400MHz (with 100-MHz FSB), enabling processing of a large amount of data at high speed without a fan.
* Containing the CONTEC-customized BIOS (manufactured by Phoenix Technologies), providing BIOS-level support.
* Coming standard with a 100BASE-TX LAN interface.
* Coming standard with PC Card slots (PCMCIA slots).
* Capable of connecting a hard disk unit and a more reliable silicon disk unit as external storage devices on the same base unit. Best suited for use in a place subject to vibration and shock or for continuous operation for an extended period of time.
OS s Supported: (No OS Installed)
* Windows NT Workstation 4.0
* CPU: Mobile Celeron Processor-LP 400MHz, FSB100MHz (Intel)
* Hard Drive: No Hard Drives Installed. Brand New Mitusbishi Melsec Q1MEM-1MSF 1MB (SRAM 512KB, FLASH512KB) MemoryCard Included
* Interfaces: RS-232C, Parallel, RJ-45, PCMCIA, USB
Please see page 20 of the following PDF for complete specifications:
Product Link: http:// /Files/PPC-CPU686_MS_.PDF

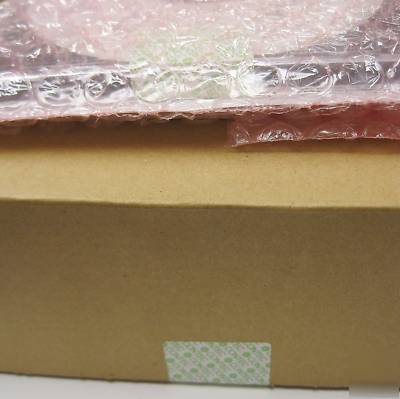

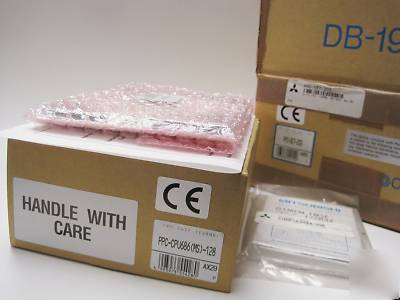

Condition: New in Box, Factory Sealed. Purchased directly from Mitusbishi Electric.
