42" chk 50HP spdl blanchard 22K-42 rotary surface grind
42" Chk 50HP Spdl Blanchard 22K-42 ROTARY SURFACE GRIND
42" Chuck 50HP Spindle Blanchard 22K-42 ROTARY SURFACE GRINDER, 23" VERT., COOLANT w/SLUDGE CONVE

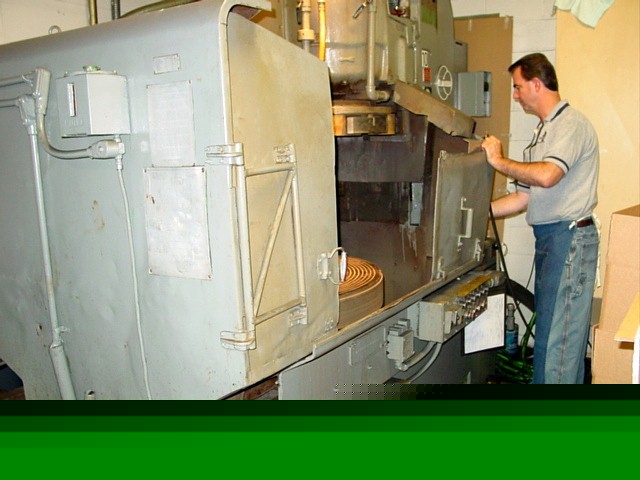

42" BLANCHARD ROTARY SURFACE GRINDER
MODEL: #22K-42 S/N: 12206 NEW: 1968
CHUCK DIAMETER .................................... 42"
SWING INSIDE GUARDS ............................... 48"
VERTICAL RANGE UNDER NEW WHEEL .................... 23"
MAXIMUM LOAD ON CHUCK ....................... 3,000 LBS
GRINDING WHEEL DIAMETER ........................... 22"
GRINDING WHEEL SPEED .......................... 720 RPM
INFINITELY VARIABLE POWER DOWNFEED .... 0.004" TO .080"
APPROXIMATE DIMENSIONS.............12'L X 8'4"W X 9'7"H
APPROXIMATE WEIGHT ......................... 16,000 LBS
50 HP 3/60/220-440 VOLT SPINDLE MOTOR
EXTRA VERTICAL RANGE (23" CAPACITY)
WET BASE W/SELF-CONTAINED COOLANT SYSTEM & MOTORIZED
42" ELECTRO-MAGNETIC CHUCK (VERY GOOD CHUCK LIFE)
"ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL
22" DIAMETER SEGMENTED WHEEL (CORTLAND)
WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
PRESENTLY WIRED FOR 3/60/220 VOLTS
