Leica wild M420 markrozoom macroscope

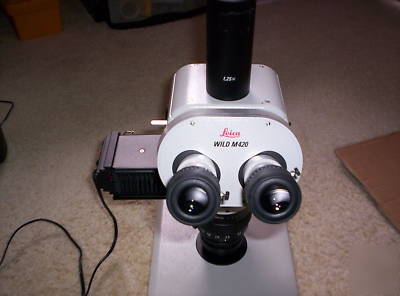

Leica Wild M420 Makrozoom Microscope
This macroscope is a special type of instrument that offers large fields of view and long working distances as a stereomicroscope, providing non destructive observation of unprepared objects. But the vertical beam path provides for paralleax-free imaging, resulting in highest accuracy, top imaging fidelity, absolute faithful photography, high measuring precision and true rendering of polarization colours. The high performance 5:1 Macrozoom objective offers an extremely high color fidelity accuracy, contrast ,sharpness and brilliance.
The system has the main specifications:
* Vertical beam path, binocular observation

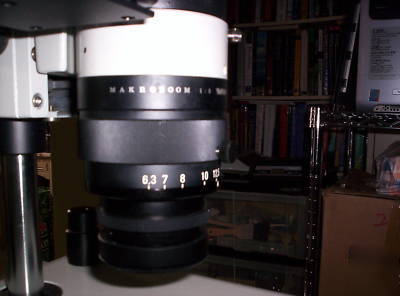

* Zoom objectives: Macrozoom 5:1 achromatic
*Built in stop for eliminating stray light during the exposure

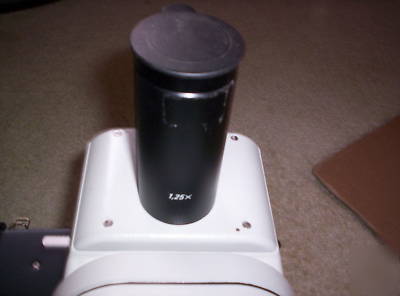

* Magnification factor: 1.25x for observation and for photo/video
* Numeraical aperture: 0.232 ( with 2.0x additional objective fitted)
* Resolution: 696lp/mm (with 2.0x additional objective fitted)

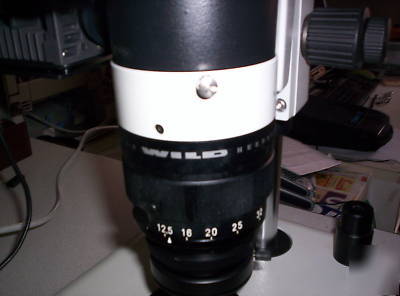

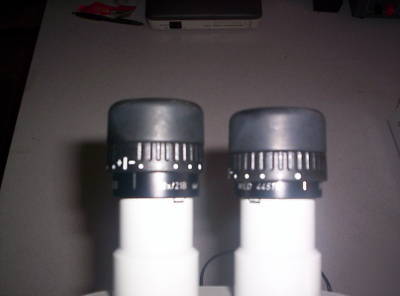

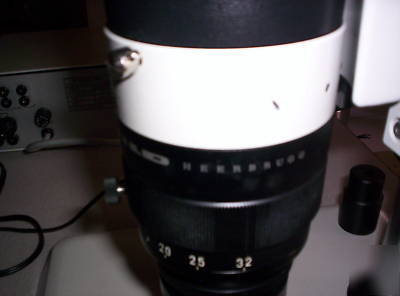

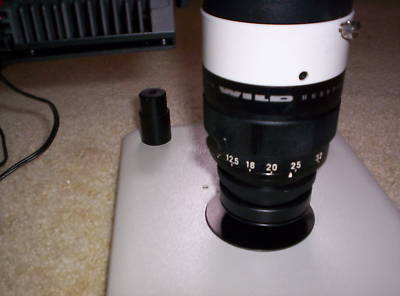

* Zoom range: (with 10x eyepieces) Macrozoom 7.9x-40x
* Total Magnifications: standard 63x-320x, 2.0x; 126x-640x, tube; 157.5x-800x
* working distances: standard 100mm, 2.0x 39mm
This item is rarely used, very clean, all adjustments are smooth,
excellent physical condition, looks like new.

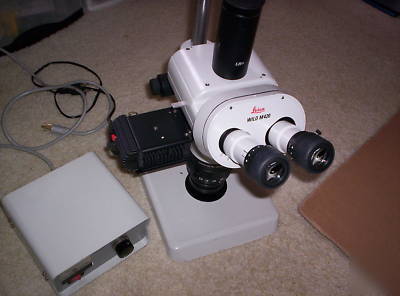

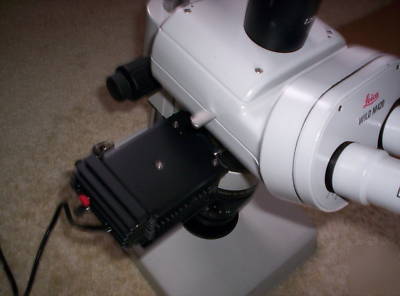

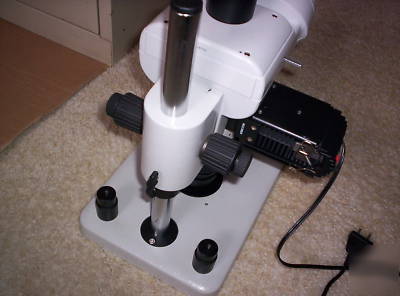

Microscope includes illuminator and power supply

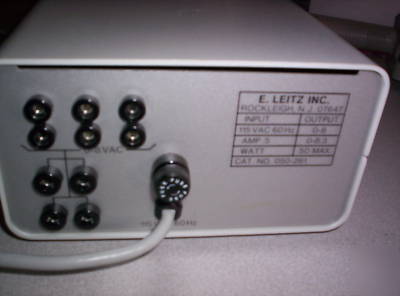

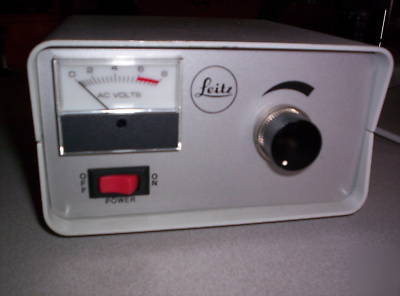

Power supply is : Leitz, 0-6V AC, good condition, works.
