Industrial monitor & touchscreen 17" his-ML17 hope ind.

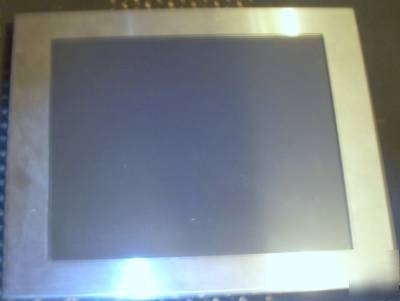

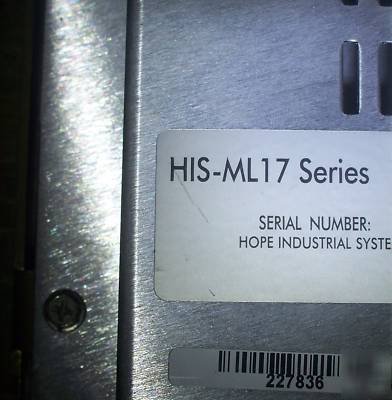

HIS-ML17 Industrial LCD Monitor/Touchscreen w/Stainless Steel Faceplate.
Made In USA by Hope Industrial Systems.
The HIS-ML17 Industrial LCD Monitor has been designed to provide the industrial user with superior picture quality and state-of-the-art features housed in a rugged industrial enclosure, which will assure reliable operation in most factory environments.
With a panel mount enclosure and depth of only 2.07" it easily fits into small spaces. And its high-resolution 17" display offers the industrial user the optimal trade-off between screen size and cost.
* 17" active-matrix LCD display
* UL Rated for Class I, II, III, Division 2
* High brightness, high contrast
* NEMA/UL Type 12/4 or 12/4/4X
* Tempered Safety Glass window option
* Analog Resistive Touchscreen option
* Only 2.07" deep behind panel
* Panel mount capable without drilling stud holes
* Thin-film Transistor (TFT) Active Matrix Liquid Crystal
* Size - 17" (43 cm) diagonal
* Image Size - (W x H) 13.3" (338 mm) x 10.6" (270 mm)
* Native Resolution - SXGA (1280 x 1024, 5:4 aspect ratio)
* Plug and Play - VESA DDC 2B
* Minimum Resolution - 640 x 350
* Pixel Pitch - 0.264 mm x 0.264 mm
* Number of Colors - 16.8 million
* Viewing Angle (Hori/Vert), typical - 170 / 155
* Brightness - 280 nits (cd/m2) max
* Contrast Ratio (typical) - 600:1
* Backlight - Four CCFTs (Cold Cathode Fluorescent Tube); 50,000 hours to half brightness; replaceable
* Optional BNC input (using HD-15 to 5-wire BNC adapter); see "Input Signal Formats" for a list of compatible video signals
* RGB Analog video, 0.7V p-p Positive at 75 Ohms (+/-5%), TTL Level (V high 2.0 V, V low 0.8 V); Compatible sync modes: Separate H/V sync
* NTSC/PAL composite input available (call for details)
* Horizontal Scan - 30-82 kHz
* Supported Video Standards - Std. VGA - 640 x 480 @ 60 Hz; SVGA - 800 x 600 @ 60 Hz; XGA - 1024 x 768 @ 60 Hz; SXGA - 1280 x 1024 @ 60 Hz (native); see user manual for a full list of resolution and timing compatibility
* Response Rate (typical) - 8 ms
* Power Input - 100/240 VAC, 1.5/0.75 A, 60/50 Hz
* Power Consumption (typical) - 36 W
* Power Management - DPMS/energy star, < 1 W
* Type - Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by 12 M5 studs
* Panel Rating - NEMA/UL Type 12/4 or 12/4/4X (with proper installation) - built to IP66 standards.
* Black Powder Coated Steel or Stainless Steel faceplate
* Temperature - 0 to 50 C (32 to 122 F)
* Humidity - 20% to 90% non-condensing
* Operating Shock - 25 g, 6 msec, half-sine
* Operating Vibration (sine) - 1.0 g, swept sine 9-500 Hz
* Transport Vibration (random) - 0.1g / Hz, 10-200 Hz; 0.03g / Hz, 200-2000 Hz
* Altitude - Operating: up to 10,000 feet; Non-operating: up to 40,000 feet
* Environmental Sulfur Protection Option - includes glass-armored touchscreen, vapor-phase corrosion inhibitor, and extensive sealing; consult sales for details.
* Panel Controls - 1, 2, Power, Down, Up
* OSD (On Screen Display) Controls - Auto Image Adjust, Contrast/Brightness, Color Adjust, Information, Manual Image Adjust, Setup, Memory Recall
* Depth - 2.07" (52.5 mm) behind panel maximum
* Bezel Options- Carbon Steel, black powder coat; Stainless Steel
* Front Bezel Outside Dimensions - 17.24" (437.8 mm) W x 13.92" (353.6 mm) H x 0.28" (7.1 mm) thick (not including gasket)
* Cutout Dimensions - 16.02" (406.9 mm) W x 12.72" (323.1 mm) H ; +/- .020"
RS-232 or USB interface to host computer (both connections are present on touchscreen monitors)
For more info : http:// /ml17_panelmount_industrial_monitor.htm
This item is in Used, Great Condition (max 6 months of usage) condition shown.
