Palstar at-1500DT excellent in the box * top end *
I am pleased to have availble this top end, in the Box, Palstar AT-1500DT Antenna Tuning Unit for sale.
Palstar Quality, Innovative Design
Made in the USA, just like all Palstar products, the AT1500DT is for the serious Ham radio hobbyist who demands value and high performance.
AT1500DT Antenna Tuner Features
The AT1500DT is a differential tuner in a classic "T" configuration, featuring a capacitor with 2 stators and 1 rotor, a precision ceramic body roller inductor, and 4:1 current balun. A differential tuner has only 2 controls to operate, thereby providing maximum ease of use in a manual tuner.
The Palstar technology found in our popular PM2000A watt meter ($149.95 value) is incorporated into the AT1500DT to provide dual cross-needle Active Peak/Peak Hold metering. Add 11 Ga. (.090" thick) iridite-treated aluminum metalwork and durable powder coated finish on the front panel and top cover, and you have a tuner that will grace your shack for years to come.
Click here for eHam.net independent product reviews on the Palstar AT1500DT.
* Power rating 1500 watts pep
* 160m to 20m(1200+/-j1200), 10m to 15m (1000+/-j1000)
* Output to both balanced and unbalanced lines
* Impedance matching range 20 ohms to 1200 ohms
* Easy and quick tuning with only two controls
* 6 position mode switch for multiple antennas
* Active Peak and Peak Hold dual cross-needle metering (1-2 sec hold) with backlighting
* Meter power range 0-300 watts / 0-3000 watts
* Differential capacitor tuning with 2 stators and 1 rotor (385 pF - 19pF - 385pF @ 5kV)
* Palstar designed ceramic body roller inductor
* High power ferrite 4:1 current balun
* Crossneedle metering with backlighting
* Powdercoated front panel and top cover
* 12 VDC Wall transformer supplied (U.S. & Canada only)
* Dimensions: 12.6" wide x 4.5" high x 14"deep

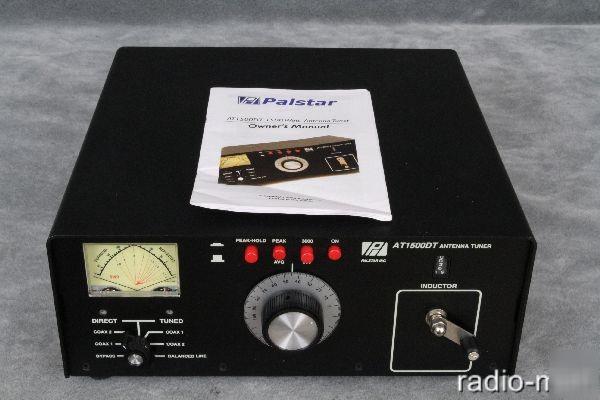

very nice condition in the box with inserts and Manual, this ATU was purchased for a project and not used so were offering it for sale.
Supplied as shown, Looks Brand New internally with no arching or carbon deposits etc.
