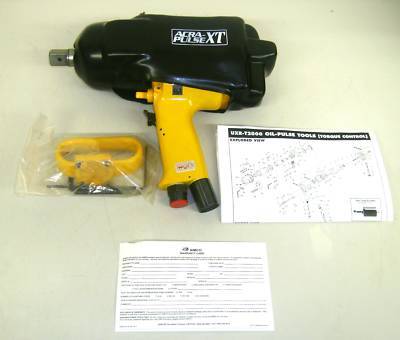

Aimco uryu acra pulse uxr-T2000 3/4" impact pulse tool
ACRA PULSE 3/4" Square Drive UXR-T2000
For Extremely Precise Torque Accuracy and Repeatability in Various Assembly Applications!
* Ideal for applications requiring no operator influence in the final fastening rundown for precise torque repeatability
* When preset torque is achieved, the hydraulic pressure is sufficient enough to bypass a spring-loaded piston and move the shutoff rod to rear, quickly opening the pilot valve and shutting off the tool
* No air timer involved with shutoff mechanism
* High speed rundown reduces fastening time
* Shutoff mechanism instantly signals cycle completion to operator
* One hand operation frees the other for productive use
* Ergonomic benefits for less fatigue and increased productivity
* Quick and easy forward and reverse operation with single-hand reverse lever
* Virtually no reaction impulse during and after fastener rundown
* Fast rundown reduces operator exposure
* Low vibration and sound levels due to absence of metal-to-metal contact
* High power to weight ratio
* Exhaust silencer with combined one-piece air inlet bushing
* No mechanical clutch or hard part engagement for low maintenance and longer life
* Extended socket and extension life
* Automatic shutoff series is self-diagnostic
* No air line lubrication with oil-free rotor blades
* Built-in torque adjuster and shutoff mechanism matches each application for required torque and fastening time
* Extremely accurate on properly designed joints
* Excellent clamp force repeatability
* Torque adjustment on outside of tool
* Monitoring available for process verification
* No oil film on finished work piece with oil-free rotor blades
Recommended Air Pressure: 85 psi
NOTE: Torque ranges reflect residual B joint torque values
