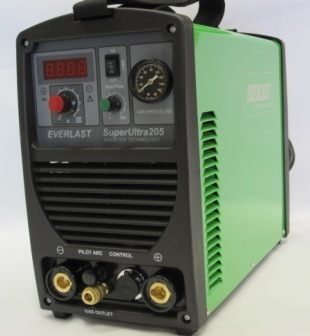

3IN1 plasma cutter / tig / arc welder (mma) 200A
THESE THREE VIDEOS SHOW THE PLASMA CUTTER AND TIG FUNCTIONS
Here is a picture of the tig weld on stainless steel done with this unit
THIS PACKAGE INCLUDES FOOT PEDAL AND ARGON REGULATOR
CATEGORY: DC CUT TIG ARC (MMA)
PURPOSE: Portable (DC) 220v Multi-purpose 200a Tig Welder + 50a Plasma Cutter
NEW FEATURE !!!! 60A PILOT ARC TORCH!!!
208/220vac 50/60HZ Input Single Phase 1PH
50amp cut draws 25Amps 40amp cut draws 22.5Amps
3" Per minute @ 1" Steel (Severance Cut) 7" Per minute @ 3/4" Thick Steel 17" Per minute @ 1/2" Quality Cut
50 Amps Plasma cutter:Duty Cycle 60% at 50 Amps and 100% AT 40 Amps.3/4 inches clean cut with 7.2 inches per minutes;1.0inches severance cut with 3.1 inches per minute.Rated Output Current is 50Amps under 220V.Works in both 50 and 60 Hz with operating air pressure as 65 psi @ 3 cfm.
200 Amps DC Tig Welder: Duty Cycle 60% at 200 Amps
ARC and 100% at 95 Amps ARC. Gas Flow: 2-5 L/Minute. It can weld all stainless steel. 150 Amps Arc Welder: Duty Cycle 60% at 150 Amps and 100% at 90 Amps.
DC welders do not weld aluminum. High Frequency and Contact Start:
Internal High Speed Cooling Fan to Regulate Temperature. Unit has built in Thermal and Overload Protection
1ST AND 2ND YEAR REPAIR OR REPLACE AT OUR DESCRESSION, 3RD YEAR PARTS ONLY.
ONTARIO RESIDENTS PAY GST AND PST, ALL OTHER PROVINCES PAY GST
RESIDENTS OUTSIDE OF CANADA ARE RESPONSIBLE FOR CUSTOM/DUTIES OR BROKERAGE FEES IF ANY.
