Window & door minimal expanding foam 20OZ can
Window & Door Minimal Expanding Foam

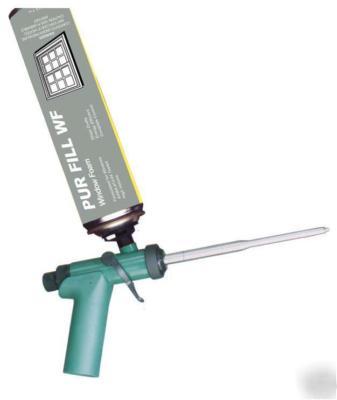

* Gun tool not included and sold separately. This is to demonstrate how the tool attaches to the can. See listing 170390125516 for tool.
Pur Fill WF window foam is a custom formulated ne-component, minimal expanding, polyurethane foam sealant. Use around windows and doors to stop the passage of air and drafts.
Proper installation will assure no bowing or moving of the window. An inch of foam will have an R factor of 6. The goal for the window installer is to match the R factor of the window being installed. Do not overfill void. Place the foam as close to the exterior wall as possible and bridge the void with a 1/2-1 inch diameter bead. After this bead is cured, carefully add foam to completely fi ll void if needed.
Pur Fill WF has been tested and conforms to AAMA 812-04. The elastic merits provide fl exibility during temperature swings. The foam cures to form a skin that acts as an air barrier as well as a moisture penetration prevention.
* Wipe the surface with a rag to remove all dust and debris
* If lumber is frozen, clean off any ice that is present on the surface
* In low humidity mist water into the void which is to be foamed
* The can temperature should be between 60 and 80 F.
* Shake the can well for 30 seconds to assure proper mixing.
* Thread the can onto the adapter on the top of the gun DO NOT OVERTIGHTEN.
* Pull the trigger for about 5 seconds to purge all air and moisture out of the gun.
* The can should be in a vertical position above the gun when foaming.
* Before foaming, lay down a few practice beads. Adjust the set screw on the back of the gun to determine the bead size that best fits your needs.
* Determine the moisture content in the air. If it is a cold dry day, mist the area with water before foaming.
* When foaming a large cross section, use a layering technique of foam, mist water, foam etc.
* Avoid dragging tip of gun against abrasive surfaces that could damage gun.
Changing Cans of Window Foam :
* Over a trash bag lined barrel, unscrew the can and immediately screw on another can of Window Foam.
* When changing cans, have the bottom of the can facing the ground.
* If fl ow of foam stops or slows, fl ush out gun with Gun Cleaner. Immediately replace with a can of Window Foam and pull trigger to fill gun with foam.
* Close set screw on the back of the dispensing gun.
* Wipe off any foam residue on the gun tip.
* Store Window Foam in an upright position with the can securely attached to the dispensing gun.
* If stored for an extended period of time, dispense some foam out of the gun once a month.
