Sumitomo type-65 ribbon fiber fusion splicer cleaver

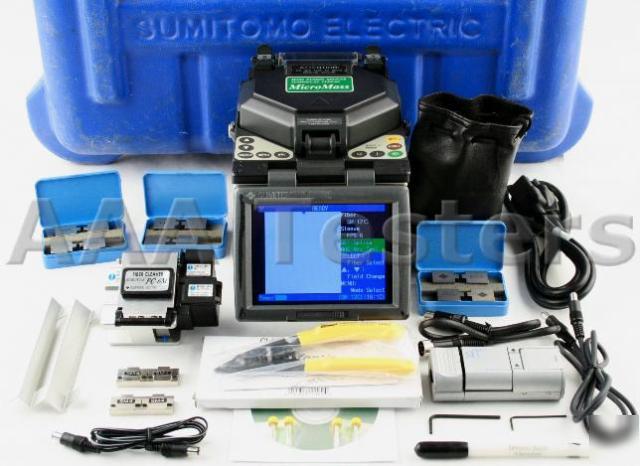

* Sumitomo Micro Mass Type-65M12 Fusion Splicer
* Sumitomo Sumiofcas FC-6M Fiber Cleaver w/ Pouch
* Sumitomo JR-5 Hot Jacket Stripper w/ DC Power Cord
* PS-65 AC Adapter/Battery Charger
* Sumitomo RH-250 Fiber Holder Set w/ Case
* Sumitomo RHS-06 Fiber Holder Set w/ Case
* Sumitomo RHS-120 Fiber Holder Set w/ Case
* Sumitomo RH-900 Fiber Holder Set w/ Case
* Clauss CFS-2 Fiber Stripper
Sumitomo Micro Mass Type-65M12 Singlemode/Multimode Single & Ribbon Fiber Fusion Splicer
Splice Single, 4, 6 & 12 Fiber Ribbon Cable!
Includes Sumitomo Sumiofcas FC-6M Fiber Cleaver, Sumitomo JR-5 Hot Jacket Stripper & Complete Accessories!
The Type-65 sets a new standard for reduced size and weight, and is designed for complete portability. Battery operated, the splicer allows more than 20 splices per battery charge including heater operation. With 30 mph wind protection and a compact size, it can splice in any environment.
Utilizing precision v-groove alignment, the Type-65 can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in aerial and taut-sheath applications. A newly developed fiber viewing system simultaneously focuses up to 12 fibers at a time and maintains equal size and resolution across all fibers for improved accuracy of splice loss estimations. The high-speed, high-resolution image processing system automatically evaluates the fibers in two planes (X and Y-axis) for cleave end face quality, cleave length irregularity, and fiber offset to screen out the most likely causes in high loss splices. The Type-65 also has programmable power management functions for longer battery operation, a large color monitor, one of the fastest built-in fiber protection sleeve heaters available, and ultra-fast 30 second mass splicing!
* Compact, Lightweight Design and Front to Back Work Flow System Simplifies Splicing in Confined Areas (i.e. Aerial, Taught-Sheath)
* Simultaneous Focusing on Up to 12 Fibers at a Time
* 5.6" Color LCD Display With On-Screen Guide and Brightness Control Eases Operation in a Field Environment
* Lower Power Consumption with Built-In Power Management Allows 20+ Splices, Including Heater Operation, on a Charged Battery
* Automatic Splice and Loss Estimationin 30 Seconds for 12 Count Ribbon Fiber
Ribbon: 250 m Single: 250 & 900 m.
Typical Splice Loss Identical Fibers
SMF: 0.05dB MMF: 0.03dB NZ-DSF: 0.07dB
Number Of Fusion Condition Settings
3 Fiber Profiles With 7 Pre-set Programs Each. Maximum Of 48 Programs.
No. Of Heater Condition Settings
12 Fibers: 30 Seconds(Set To Loss Estimation)
150W x 150H x 150D mm(5.9W x 5.9H x 5.9D Inch)
Input: 100 - 240V AC 50/60Hz 12V DC
Low Glare 5.6 Inch Color LCD Monitor
20+ 12- Fiber Mass Splices Including Protection Sleeve Heater & Thermal Jacket Remover Operation
