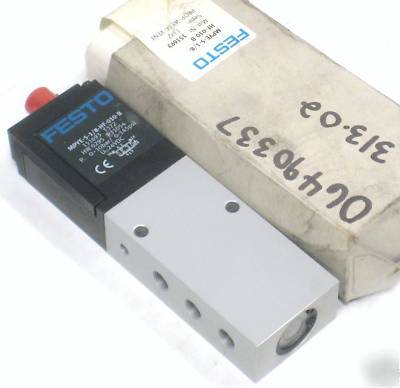

Festo mpye-5-1/8-hf-010-b directional control valve 5/3
This listing is for a control valve.
* Model/ Part#: MPYE-5-1/8-HF-010-B
* Description: Directional Control Valve Proportional
* Connection M5, G1/8, G1/4, G3/8
* Flow 100 ... 2 000 l/min
* Dynamic control valve 5/3-way
* Electronic flow control valve
* Setpoint value module available as accessory.
* Design structure Piston slide
* Ambient temperature 0 - 50 C
* Mounting type with through hole
* Operating pressure 0 - 10 bar
* Medium temperature 5 - 40 C
* Operating medium Filtered, unlubricated compressed air, 5 m filtration
* Type of actuation electrical
* Flow direction non reversible
* CE Symbol according to EU-EMV guideline
* Type of reset Magnetic spring
* Pneumatic connection, port 1 G1/8
* Pneumatic connection, port 2 G1/8
* Pneumatic connection, port 3 G1/8
* Electrical connection 4-pin
* Electrical connection M12x1
* Electrical connection Plug
* Electrical connection Round design
* Standard nominal flow rate 700 l/min
* Corrosion resistance classification CRC 2
* Polarity protected for all electrical connections
* Pneumatic connection, port 4 G1/8
* Pneumatic connection, port 5 G1/8
* SETPOINT/ACTUAL values Voltage type 0 - 10 V
* Safety instructions MPYE safety position: If the power supply cable is interrupted, travel occurs to the closed mid-posi
* Operating voltage range DC 17 - 30 V
* Materials information for cover ABS
* Materials information for cover coated
* Materials information, housing Aluminium
* Materials information, housing Anodised
* Materials information for seals NBR
