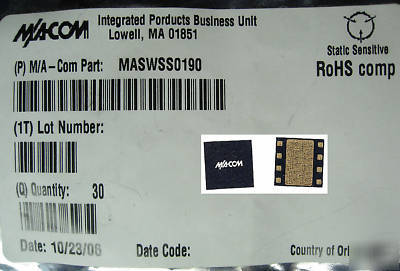

(10) m/a-com MASWSS0190 2-6 ghz dpdt diversity switch
These are new RoHS compliant DPDT (double-pole/double-throw) diversity switches, M/A-COM PN MASWSS0190, designed for applications that require high linearity and isolation, with low cost and insertion loss all in a small size package. The MASWSS0190, with its low leakage current, is a high power switch that maximizes system linearity performance while simultaneously reducing DC power consumption. A datasheet is available at http:// /datasheets/maswss0190_v1.pdf .
For cost sensitive and space constrained applications, the MASWSS0190's lead-free, "low profile" 2 mm 8-lead UTDFN packaging and competitive pricing are attractive draw. The MASWSS0190 is fabricated on a low-cost 0.5-micron gate-length GaAs process with full passivation added for robust reliability and each switch is 100% RF tested to ensure performance compliance.
802.11a + b/g Dual Band Applications
Broadband Performance: 2.0 - 6.0 GHz
Low Insertion Loss: 0.75 dB @ 2.4 GHz; 0.9 dB @ 4.9 to 6.0 GHz
High Isolation: 43 dB @ 2.4 GHz; 31 dB @ 4.9 to 6.0 GHz
Fast Switching Speed: 0.5 m GaAs PHEMT
Lead-Free 2 mm 8-Lead UTDFN Package
Electrolytic Gold Plate over Nickel Plate
Halogen-Free Green Mold Compound
RoHS* Compliant and 260 C Reflow Compatible
M/A-COM s MASWSS0190 is a broadband GaAs PHEMT MMIC diversity switch available in a low cost, lead-free, ultra thin 2 mm 8-lead UTDFN package. The MASWSS0190 is ideally suited for applications where very small size and low cost are required.
Typical applications are for WLAN IEEE 802.11a and 802.11b/g systems that employ two antennas for transmit and receive diversity. Other applications include cordless phones and base stations. Designed for high power, this DPDT switch maintains high linearity up to 6.0 GHz. The MASWSS0190 is fabricated using a 0.5 micron gate length GaAs PHEMT process. The process features full passivation for performance and reliability.
THIS PART IS GUARANTEED TO BE GOOD. If you find that it doesn t perform as specified, let me know in 30 days or so, and I will provide a refund.
