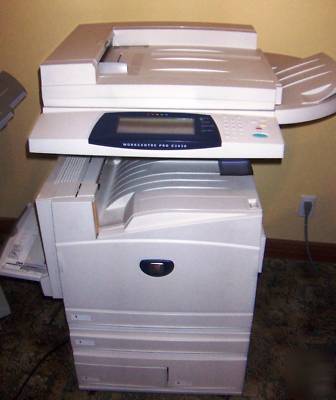

Xerox wcp 2636- copy/print/scan
Meter Read is 342,312-Color and 115,170-Black
Maintained by Xerox Service-Very Clean
6.1 seconds black-and-white / 8.5 seconds color
32 images per minute (letter/A4)
Variable zoom from 25% to 400% in 1% increments
Six user-programmable percentages
Scan Once Print Many, Electronic Pre-Collation standard
PostScript emulation: 600 x 600 dpi: 1200 x 1200 dpi*
* 1200 x 1200 dpi not supported on 11 x 17 in. paper
LCDS, SCS, XES, and IPDS through third party transforms
Microsoft Windows 95, 98, Me (Millennium), NT 4.0, 2000, XP , Windows Server 2003, Windows Vista
Solaris 2.5.1, 2.6 and higher
Mandrake (LPRNG printing infrastructure)
TCP/IP: Internet Printing Protocol, LPR/LPD, Raw Socket Printing/Port 9100, NetBIOS, HTTP
Netware: Bindery and NDS IPX/SPX, NDPS /NEPS (with Server Gateway)
Microsoft Windows Networking over IP and NetBEUI
Ethernet 100BaseT/10BaseT, 10Base2, 10Base5 via adapter
Wireless Ethernet (IEEE 802.11b) via third-party adapters
Bit depth: 1 bit (monochrome), 8 bit (greyscale), 24 bit (color)
TIFF 6.0 with JPEG, G4 MMR compression (single page or multiple pages)
PDF G4 MMR, MRC or JPEG compression
Scan to remote e-mail destinations via direct SMTP addresses or via various network scanning software options
Scan to application (workflow, Electronic Document Management System/Repositories)
Scan to Microsoft Exchange 2000 Web Folders
Scan to PC Desktop (Standard and Deluxe editions)
Scan to Windows XP client via WIA (Windows Image Acquisition)
- A desktop and server-based offering that provides document imaging, archiving, editing and organization tools
- ScanSoft PaperPort SE 2.0 image viewing and file management software
- ScanSoft OmniPage SE 1.0 (for Distribution Server installation) and ScanSoft OmniPage SE 2.0 (for desktop/client installation) OCR and file format conversion software
- Image Retriever provides fully automated retrieval of scanned images direct from a scan enabled Xerox WorkCentre Pro to individual desktops.
- A desktop and server based offering that provides document imaging, archiving, editing and organization tools
- ScanSoft PaperPort Pro 9.0 Office image viewing and file management software
- ScanSoft OmniPage Pro 11.0 (for Distribution Server installation) and ScanSoft OmniPage Pro 12.0 Office (for desktop/client installation) OCR and file format conversion software
- Image Retriever provides fully automated retrieval of scanned images direct from a scan enabled Xerox WorkCentre Pro to individual desktops. Also includes an E-Mail inbox polling capability.
Color scanning, Greyscale, Black and White
Direct document e-mail from device
Manual or directory Exchange/Notes/LDAP address searching
Device login with network user name and password
Supports Kerberos (Windows NT 4.0/UNIX,/Windows 2003 Server), SMB (Windows NT 4.0/Windows 2000/Windows 2003 Server), and Novell NetWare 4.x/5.x/6.x
Optional PIN-based guest login
Corporate address list via LDAPv3
Downloaded address list (comma-separated file format)
One Tray Module with Cabinet option (Total 1,140 sheets): Adds one 520-sheet Paper Tray
Three Tray Module option (Total 2,180 sheets): Adds three 520-sheet Paper Trays
High Capacity Feeder option (Total 3,140 sheets): Adds one 520-sheet Paper Tray and two Trays with total 2,000-sheet capacity
Minimum: 5.5 in. x 8.5 in./140 x 216 mm/A5
Maximum: 11 in. x 17 in./279 x 432 mm/A3
Bypass minimum: 4.13 in. x 5.83 in./100 x 140 mm/A6
Bypass maximum: 12 in. x 19 in./320 x 483 mm
Standard Tray: 17 to 80 lb Cover/64 to 220 gsm
Bypass Tray: 16 lb bond to 80 lb Cover/60 to 220 gsm
- Stacking Tray: 400 sheets (200 sheets with finisher option)
Print: 128 MB RAM (256 MB max)
Copy Pre-collation Memory: 256 MB RAM standard
Fully configured:53 in. x 25 in. x 43.9 in./ 1,346 x 636 x 1,116 mm
Range 50 to 90 F (10 to 32 C)
- SNMP Version 1 and SNMP Version 2c trap over TCP/IP and IP
- MIB access (IETF-MIB II RFC 1213), Host Resources
- MIB RFC 2790, Printer MIB RFC 1759 v. 2
CentreWare Network Services, Xerox CentreWare Web, Novell NDPS/NEPS (gateway for WorkCentre Pro), Xerox CentreWare for Unicenter TNG , Xerox CentreWare for Tivoli NetView , Xerox CentreWare MC for Microsoft Management Console (MMC), Xerox CentreWare for HP OpenView , Xerox Device Types for SAP R/3 Environment, Xerox SAP R/3 Intelligent Barcode Utility (Optional), Xerox Barcode Pro PS(optional)
Toner Cartridge: 26,000 at 5% area coverage black and white
Staple Cartridge: Staple Refills 5,000 per cartridge (3 cartridges per box)
FCC Class A Compliant (U.S.), DOC Class A Compliant (Canada)
UL Listed (UL 1950, Third Edition)
CB Certified (IEC 60950/EN 60950)
