Fluke networks 990DSL copperpro tester 990DSLWT wb tdr
Fluke Networks 990DSL CopperPro Tester
Size 9.8"H x 5.3"W x 3.2"D (24.9cm x 13.5cm x 8.1cm); Weight 4lbs (1.81 kg); Display 320 x 240 pixel graphic LCD with cklight and adjustable contrast; LED Indicator: Charging status indicator (side connector panel); Communication Port: RS-232 PC/Printer port (DB-9); AC Operation: External AC adapter/charger; Battery Type (installed): Internal removable NiMH rechargeable battery pack; Battery Life: A fully charged battery provides approximately 16 hours of normal use; Battery Recharge Time (in tester): 2 to 3 hours for a fully discharged battery pack; Operating Temperature: -4 to 140 F (-20 to 60 C); Storage Temperature: -40 to 158 F (-40 to 70 C); Humidity Tolerance (operation without condensation): 95%; Rain Resistance: IEC60529 IP02, International protection water dripping; Vibration: Random, 2 g, 5 Hz to 500 Hz; Shock: 1 Meter Drop Test; Altitude: 4500 m (15,000 ft); Safety: CSA C22.2 No.1010.1; CE: EN 61326 Emissions and Immunity CLASS A; EN 61010-1 2nd ammendment; AC Voltage: 0 to 250V (1% 0.5V accuracy); DC Voltage (RIN=100 kohms or 10 Mohms): Range: 0 to 150V (1% 0.5V accuracy); 150 to 300V (2% accuracy); DC Loop Current (430 ohms): 0 to 100 mA (2% 0.3 mA accuracy); Resistance (shorts & grounds): 0 to 100 ohms (0.1% 0.10 ohm accuracy); 100 ohms to 1000 kohms (0.2% 0.10 ohm accuracy); 4 kohms to 999 Mohms (3% accuracy); Opens: 0 to 3000 ft (1% 5 ft accuracy), 3 to 50 kft (3% accuracy), 50 to 80 kft (5% accuracy); Splits: Range: 0 to 50 kft (Accuracy: 10% of Cable Length); RFL (RTS = Res. to Strap): Fault Resistance (Rf) 0 to 30 Mohms, Loop Resistance 0 to 4000 ohms, Resistance to Fault (@ Rf = 100 kohms) 0 to 100 ohms (0.1% RTS 0.10 ohm); 100 ohms to 4 kohm (0.3% RTS 0.10 ohm); Load Coils: 0 to 6 ( 1 accuracy); Tracing Tone: Frequency: 577.5 Hz (0.1% accuracy); Range: > 15Vp-p (10% accuracy); VF Noise: Impedance 600 ohms, Bridged (1% accuracy); Filters: C, CN, 3k, 15k, Psophometric; Metallic Noise: 0 to 10 dBrn ( 2 dB accuracy); 10 to 100 dBrn ( 1 dB accuracy); Power Influence: 40 to 120 dBrn ( 2 dB accuracy); VF Loss: Signal Level: -40 to 10 dBm ( 0.5 dBm accuracy), Frequency: 100 Hz to 20 kHz (0.1% 2 Hz accuracy); WB Noise/Level: Impedance Range 100 ohms, 135 ohms, Bridged (1% accuracy), Filters E, F, G, None, Frequency 10 kHz to 1200 kHz (0.1% 508 Hz accuracy), Amplitude -50 to 3 dBm ( 1 dB @ 135 ohms), -90 to -50 dBm ( 3 dB @ 135 ohms); WB Loss Impedance: 135 ohms (1% accuracy), Frequency: 10 kHz to 1200 kHz (0.1% 508 Hz accuracy), Magnitude: 0 to 50 dB ( 1 dB accuracy); 50 to 70 dB ( 2 dB accuracy); WB Longitudinal Balance (0 to 70 dB; 2 dB), Disturbing Frequency: 10 to 1200 kHz (0.1% accuracy), Impedance: 100 ohms, 135 ohms (1% accuracy), Filters: E, F, G, None; Impedance: 135 ohms (1% accuracy); Pulse-width: 20, 100, 500, 1000, 2500, 5000 ns (10% 5 ns accuracy); Vop Selection: 0.300 to 0.999; Range (Vop=0.64): 30,000 ft (9144m); Range Selection (Auto.): 10 ft to 48 kft (3 to 14630m); Horizontal Resolution: 0.5 to 156 ft (0.1524 to 47.5m); Distance to Reflect Range: 0 to 30,000 ft (0 to 9144m), Accuracy: 1% Vop Uncertainty; Vertical Gain: Range: 80 dB, Accuracy: 2 dB; Power Filter: 5 kHz Highpass; Averaging Filter: 4x Waveform Avg; Input Protection: 400 V pk.
In its basic configuration, CopperPro offers a broad range of Plain Old Telephone Services (POTS) troubleshooting, fault location and line qualification capabilities. Its Wideband/TDR option adds high frequency transmission testing and qualification functions for services like ADSL, HDSL, HDSL2, HDSL4, ISDN, T1, E1 and DDS. And the TDR feature of the option adds precise fault location and analysis. The Wideband/TDR option can be added at time of purchase or later at an authorized service center.

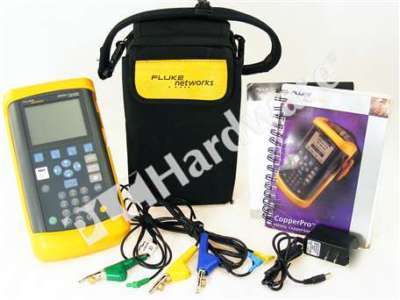

One Fluke Networks 990DSL CopperPro Tester with Installed Options WB, TDR in excellent working and cosmetic condition
