Riser bond 1205 cxa cable fault locator/tester
Metallic Time Domain Reflectometer
RANGE-PLUS - Two-button operation
that allows the operator to quickly scan
the cable under test while automatically
stepping through a specific pulse width,
vertical gain, and cable length.
Sub-nanosecond Pulse Width - Pinpoint
minor faults which interrupt digital services
and cause signal loss, ingress, and egress.
Intermittent Fault Detection (IFD) -
Monitor and locate hard-to-find intermittent

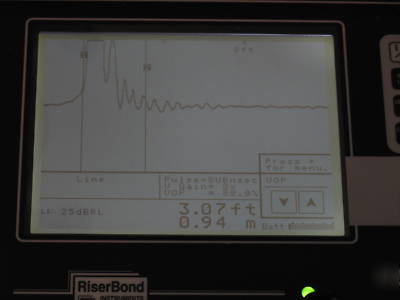

Dual Independent Cursors - Measure
between any two points on the waveform.
SUPER-STORE Waveform Data Storage
- Helps reduce downtime in a system.
Simply connect the TDR, press store , and
have the system back up and running within
minutes. Analyze the waveform later.
WAVE-VIEW Software - Upload waveforms
to your computer. Document before
accepting new plant, save money when
comparing replacement versus repair cost.
Rugged, waterproof packaging -
Rugged, weatherproof casing helps keep
the 1205CXA on the job, regardless of location
Easy-to-use - Logical, step-by-step testing
for fault location and diagnosis is easyto-
use by all levels of expertise.
Height: 9.75 inches (247.6 mm)
Battery: Internal, rechargeable, 7.2 V Nickel metal hydride
Charging Source: External 12 VAC transformer, 1.3 A
Operating Time: Greater than 6 hours, continuous without backlight
Operating temperature: 0 C (+32 F) to +50 C (+122 F)
Typical temperature: -15 C (+5 F) to +60 C (+140 F)
Storage temperature: -20 C (-4 F) to +60 C (+140 F)
Humidity: 95% maximum relative humidity, non-condensing
320 x 240 dot-matrix, liquid crystal display (LCD) with cathode
fluorescent (CFL) backlighting
63,700 feet (19,400 meters) at .990 VOP
51,500 feet (15,500 meters at .800 VOP
Range varies with VOP. Maximum testable cable length varies with
Up to 2,000 ft (610 m): <.05 ft (.03 m) at .990 VOP
Over 2,000 ft (610 m) 1 ft. (.1 m) at any VOP
Vertical Resolution: 14 bits with 170 dots displayed
Vertical Sensitivity: Greater than 65 dB
Output Connector: Front panel Female BNC
Velocity of Propagation: Two user-selectable display formats.
VOP (%) with 3 digit precision ranging from 30.0% to 99.9%; V/2 with
4 digit precision ranging from 45.8 to 148.9 in meters mode or from
400 volts (AC + DC) from DC to 400 Hz and decreases to 10 volts at
Accuracy will vary with cable VOP and cable type.
+/- .1 ft (.03 m) plus +/- .01% of reading
Output Pulses: Selectable output pulse widths
Auto dBRL: 2 digit auto return loss calculation at cursor setting
Waveform Storage: Each with full vertical resolution
Automatic/Manual Noise Filter:
Standard: Two averaging filters
Optional: Multi-function/Multi-level filtering
