Lorain flotrol rectifier model A100F25
Lorain Flotrol Rectifier Model A100F25
Lorain Flotrol Rectifier Model A100F25 High Frequency Rectifier
This is a used unit with some scratches and scuff. I am unable to test it. The specs. listed on the case are: Spec. 527404800, Serial 295, Output Volts 29VDC, Input Volts 120/208/240, Input Amps 38/24/21, Output Amps 100, Phase 1, Input frequency 60Hz.

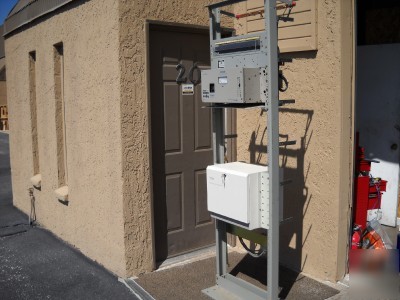

This unit is connected to a heavy steel component rack Approx 7ft tall and 24 1/2 inches wide. The rectifier is wired to another unit manuf. by Lorain which I have not been able to identify. It has a plate marked, Model special, Volts +24, Amps 200, Spec 902074601, Serial 7969, List EX 20746/93.
It also has a component marked TCM-1 Wireless Access Communication System, it appears to be a junction type box for computer cards, there are no cards installed.
There are some other smaller components as well and are shown in the pictures. If you have any questions you can call me (Dale) at (***)-229-1215.
