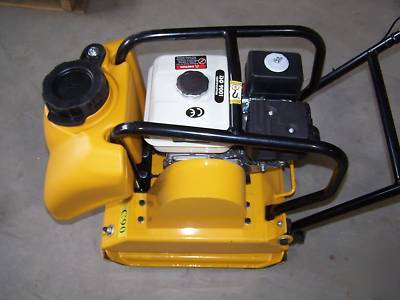

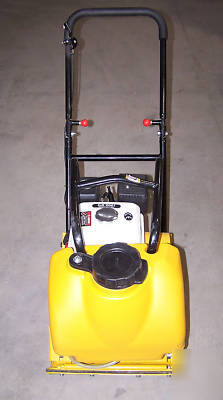

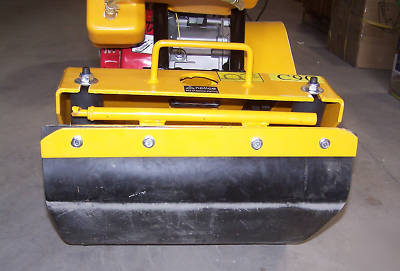

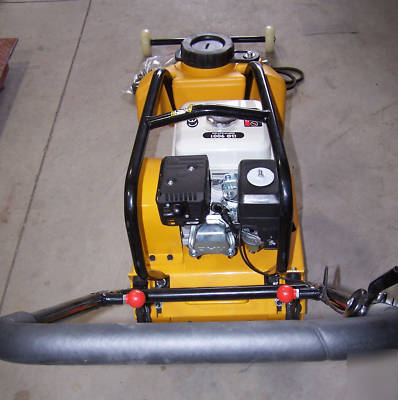

Ge-wilson high impact vibrating plate tamper
High Impact Vibrating Plate Tamper C-90
Oversized 6 Bolt main vibrator for long life
Center mounted vibrator for equal force over whole base plate
Effective base area :21 x 18 inch
Impact force: 20KN (4,900 lb force)
Travel Speed: Max. 72-85 foot / min
Climb ability: 0 23 degree
Compaction depth: Max. 7.90 inch
Heavy duty engine frame guard
Heavy duty shock mounts reduces vibration to the upper engine & handle
Upper handle soft rubber grip reduces operator fatigue
Foldable handle for easy transport and storage
Open design reduces dirt build up and easy cleaning
Powerful design compaction of asphalt, sand, gravel, grit and stone dust etc.
Water tank 3.2 gallons with large mouth easy fill

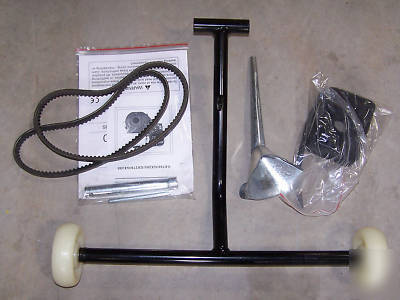

Wheel dolly for easy transportation

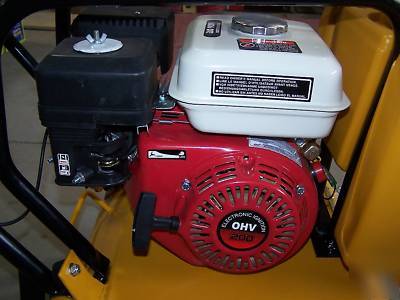

Engine: Honda copy EPA-CE certified
Max. Power: (6.5HP) / 3600rpm
Engine Type: OHV25 Tilt single cylinder, forced air cooling 4- stroke
Fuel tank capacity: 1 US gallon
Go to www.ge-wilson for more information
