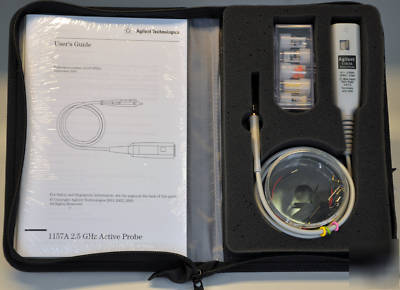

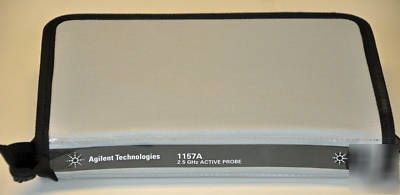

Agilent 1157A active oscilloscope probe, 2.5 ghz
Agilent 1157A Active Probe, 2.5 GHz
The Agilent 1157A active probe offers R & D engineers the performance they need to probe small geometries in hard-to-reach areas on the DUT. The probe was designed specifically for the Infiniium Series, and InfiniiVision 5000, 6000 and 7000 Series oscilloscopes (except for 6000 Series 100MHz models).
As the speeds in your design increase, you may notice more overshoot, ringing, and other anomalies when connecting an oscilloscope probe. Probes form a resonant circuit where they connect to the device. If this resonance is within the bandwidth of the oscilloscope probe you are using, it will be difficult to determine if the measurement anomalies are due to your circuit or the probe.
The Agilent 1157A probe optimizes performance to make your job easier.
Small size makes probing easier
100 k-ohm, 0.8 pF, non-resonant input impedance
5 V peak-to-peak dynamic range
Accessories designed for minimal loading on your device and optimum response
AutoProbe interface compatible
Warranty: These units are in excellent physical and working condition. The units come with a 7 day guarantee against being DOA from receipt.
