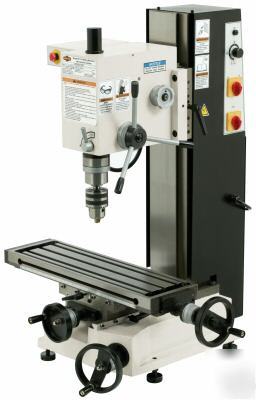

Shop fox® M1110 6" x 21" milling machine w/ vs
M1110 - SHOP FOX 6" X 21" Variable Speed Mill/Drill
Enjoy the precision ground dovetail column that allows for fast and easy tool changes without having to re-register the spindle centerline. The Z-axis handwheel with the fully geared lift system easily lifts and lowers the headstock up to 14-3/4". A 3/4 HP reversible variable-speed universal motor drives an all-steel geared Hi/Lo range gearbox which drives the 60mm diameter quill and R-8 spindle. The precision ground cast iron milling table with coolant troughs and drain will accept an aftermarket coolant system and power feed. These features combined with the outstanding X and Y table travel of 5-3/4" x 15-1/2" make the M1110 Mill/Drill one of the most popular units available.
* Variable spindle speed from 0 - 2000 RPM
* Push button emergency switch with indicator lights
* Almost 14" of headstock movement
* Hi/Lo range all-steel gear box
* Includes: 5/8" drill chuck & arbor, 2 T-nuts, 2 open end combo wrenches, 4 Allen wrenches, extra drive belt and 4 leveling feet
* Motor: 3/4 HP, 110V, single-phase, universal
* Max. distance spindle to table: 14-3/4"
* X and Y handwheel calibration: 0.001"
* Z handwheel calibration: 0.005"
* T-Slots: 3 @ 1-11/16" centers, 3/8" studs
* Table size: 6-1/4" x 21-5/8"
* Table travel (longitudinal): 15-7/8"
* Table travel (cross): 5-3/4"
* Max. face cutter diameter: 2"
* Variable speed: 0 - 1000, 0 - 2000 RPM (Hi-lo gearbox)
