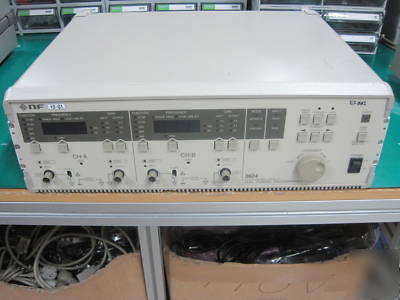

NF3624 dual channel programmable filter
NF 3624 Dual Channel Programmable Filter
Filter mode: LP-MF, LP-PL, HPF, BPF, BEF, THRU (MF: maximum flat, PL: phase linear)
Operational modes: SEPARATE (separate CH-A and CH-B), CASCADE (serially connected CH-A and CH-B)
Pass band gain: X1, X2, X5 selectable at both input and output
Input type: Single-ended or floating, selectable
Frequency response in THRU mode: * DC to 1MHz (+5dB, -3dB) typ.
Maximum attenuation: 100dB or greater (to 100kHz), 80dB or greater (to 1MHz)
Power requirements: AC100, 120, 220 or 240V 10% (max. 250V), switchable
