New port umr 8.51 double row ball bearing stage

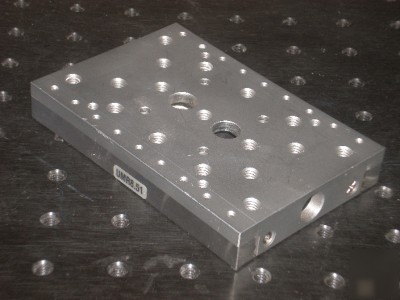

Newport UMR 8.51 Double Row Ball Bearing Stage
English Version As Pictured. Used.
UMR Series Precision Double-Row Ball Bearing Linear Stages feature steel construction for high stability and rigidity. The ball bearings and precision-ground bearing surfaces provide exceptional linear travel, with angular deviation better than 100-200 mrad. UMR3, UMR5, and URM8 Series Stages have double-row ball bearings making them an excellent choice for carrying high loads. UMR12 Series Stages contain a single row of ball bearings. In all UMR stages, the moving carriage is preloaded by two springs to ensure constant micrometer contact for smooth, backlash-free motion. Multiple drive options cover the range of precision positioning. Standard BM Series Micrometers provide 1 mm sensitivity, while DM Series Differential Micrometers offer 0.1 mm. For coarse motion with position locking, a fixed positioning kit replaces the micrometer with two opposing adjustment screws and lock nuts. An optional carriage locking kit includes a screw that mounts in the stage body opposite the micrometer. Motorized actuators can be added for precision motion control.
Two stages can be easily stacked in an XY configuration and mounted to a table or breadboard (M-PBN mounting base required, except UMR8 and UMR12 Series). Multi-axis stage configurations are easily assembled using EQ Series angle brackets. UMR stages are compatible with UTR and URM Rotation Stages, BGM Goniometers, and SL Series Mirror Mounts. (From the Newport.com website)
