Melles griot piezo electric controller module, 17MPZ001

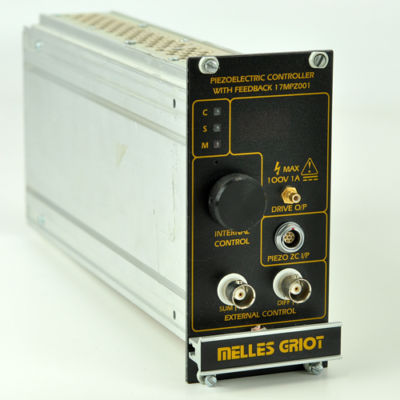

Melles Griot Piezo Electric Controller Module, 17MPZ001 Used
Model/Part No:17 MPZ 001 Our Item ID: 2813
Melles Griot 17 MPZ 001 PiezoElectric Controller Module.Enhanced user interface, both from software and front panel controls. Noise equivalent motion less than 5 nm. Voltage (V) and Position (mm) modes. Signal routing via the front panel connectors or internal backplane channels.
In the closed-loop mode, there is automatic compensation for any small positional perturbations. Well-behaved positional control is provided in a monotonic manner down to nanometric levels. The controller utilizes an ultrasensitive position transducer to monitor the exact extension of the piezoactuator and then generates an error signal to close the position loop.
Piezoelectric hysteresis and creep are eliminated, and position on demand is available at a low nanometric level, with the piezoelectrics fulfilling their potential as the ultimate positioning actuators.
0-75 VDC, SMC screw connectors
BNC 0-10 VDC inputs, SUMed or DIFFerenced with output from a 10-turn manual offsetting potentiometer
Voltage and Position in m: < 5 nm accuracy
12 HP (61 mm)3U (134 mm) 220 mm
Item Tested?: Not TestedPhysical Condition: Very Good; Working Condition: Not Tested, or Unable To Test3 | 14x 10x10 | 1
