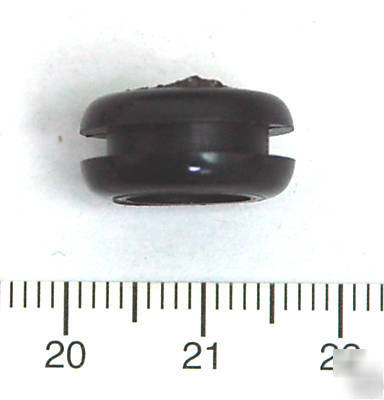

Soft grommet gm-1 gm-2 gm-3 open type

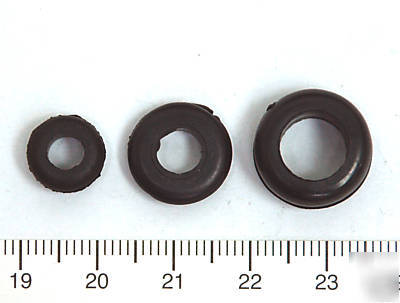

Part No. :GM-1 (big), GM-2 (middle), GM-3 (small)
GM-1 size: 15.5x9.0x7.5mm, outside Dia x inside Dia x T
Wire hole=9.0mm,dia. Panel thickness max acceptable=2.5mm
GM-2 size: 13.5x6.5x4.2mm, outside Dia x inside Dia x T
Wire hole=6.5mm,dia. Panel thickness max acceptable=1.5mm
GM-3 size: 10.0x5.0x5.5mm, outside Dia x inside Dia x T
Wire hole=5.0mm,dia. Panel thickness max acceptable=1.5mm
GM-1 x5pcs, or GM-2 x15pcs, or GM-3 x20pcs
