Dalsa coreco X64-cl ipro camera link frame grabber

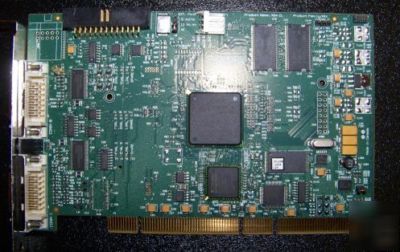

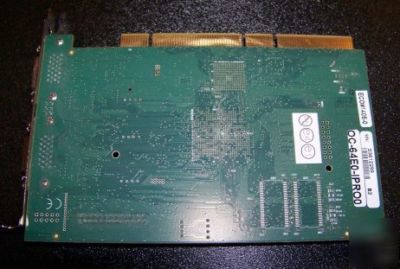

Dalsa Coreco X64-CL iPro Camera Link Frame Grabber
2. Coreco LT Library ver. 2006 and drivers that came with board.

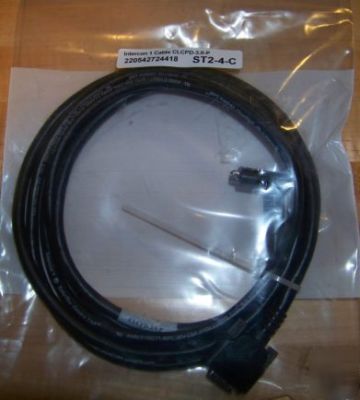

3. Qt.1 Intercon 1 cable CLCPD-3.0-P (CamLink, 3 meters)
Condition: Tested using Imperx IPX-VGA210-L. Guaranteed not DOA.
Dual independent Base or Single Medium Camera Link interface
85 Mhz input , total 32MB local memory
These cards have been primarily developed for industrial use, which is why they offer features such as robust design,
guaranteed data security, long-term availability, high performance and extensive interfaces for industrial integration.
As a result, they are suitable for all industrial CameraLink applications that require high transmission performance and
data security while also offering excellent value for money.
Half-length PCI frame grabber for image acquisition from CameraLink cameras up to 64 bits
For line scan and area scan cameras
Supports 2 base cameras independently of one another or one medium camera (X64-CL iPRO)
Supports 1 base camera (X64-CL iPRO\LITE)
Continuous transfer rates of 300MB/s via PCI bus
PCI 2.2 64bit/66MHz or 32bit/33MHz-compatible, 5V and 3.3V and PCI-X slot-compatible
Sampling rates up to 85MHz per channel
Programmable image sizes up to 256k x 16M (H/V) to an infinite number of lines for line scan cameras
Hardware-implemented, self-loading scatter/gather DMA transfer permits data transfer with no CPU load
Online sorting of multi-tapped cameras
Two independent trigger inputs (TTL, RS422 or opto-isolated)
12 digital, intelligent I/Os (optional)
2 independent shaft encoders (e.g. for the connection of an incremental encoder)
Interrupt support for various events
Look Up Tables (LUT) up to 4096 x 12-bit per channel
RS-232 interface for direct camera control via the CameraLink interface
Camera power: 12V/5V 1.5A (optional)
Guaranteed reporting and location of data loss through "trigger to image-reliability"
Please note that this is not PCI-E card, it is PCI/PCI-X. It runs fine in 64-bit or 32-bit PCI slots, including newest
motherboard with PCI slots. Estimated bandwidth in 64-bit PCI slot is 300 MB/s, 32-bit slot is about 150 MB/s.
This board comes with SaperaLT SDK that allows to develop software in C++ using MS Studio. It is compact,
pretty high performance board that will certainly help you to learn machine vision and image processing.
Guaranteed NOT DOA, NO RETURNS.
Item location CA 92655 (Westminster, California).
