This listing is for a step (stepper, stepping) motor / motion control.
* Make: Applied Motion Products
* Model / Part #: SI-5580 (SI5580)
* Description: Step Motor Driver

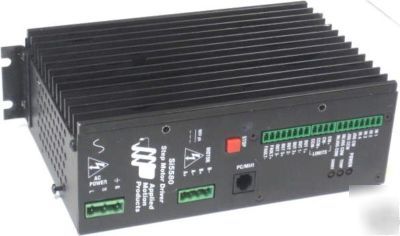

The Si5580 is a programmable stepper drive/indexer packaged in a rugged steel case painted black with white epoxy silkscreen. Integral heat sink, mounting brackets, switch covers and connectors are included with each Si5580. The drive/indexer has been matched with twelve recommended NEMA 23 & 34 motors and comes with all operating software necessary to create a complete stepper motion solution.
The Si5580 includes Applied Motion Products' , Microsoft Windows based, Si software language for quick set up and ease of use. The Si is ideal for stand-alone operation. For more experienced users, with software development expertise, the Si5580 also comes with Applied' s Si Command Language (SCL) programming instruction set. SCL allows for control of the Si drive from a host PC or PLC thus permitting the user to perform a variety of motion, I/O tasks and system status retrieval via the host.
Multiple axis applications are handled by our SiNet Hub Programmer, which gives you the ability to control up to 8 Si drives, either stepper or servo on the same hub. Not only can you coordinate up to eight motors, the hub also has access to the inputs and outputs of all the drives, providing your program with up to 64 inputs and 24 outputs. You can also use Applied' s MMI which allows the machine operator to enter specific motion commands. Factory set to operate at 110-volt input; the Si5580 can be set by the user to operate at 220-volt input by a simply switch selection.
Pluggable screw terminal blocks are provided for the I/O, motor and AC power inputs. Mating connectors, programming cable with computer interface connector as well as all operating software are provided with each Si drive.
The Si5580 is both CE and TUV compliant.
* Si , Si Command Language (SCL) or SiNet Hub programming languages included with drive
* AC input 110V or 220V switch selectable, 50-60 Hz
* DC bus voltage 75 VDC full load, 80 VDC nominal
* Software selectable motor current from 0.5 5.5 amps/phase
* Software selectable motor resolution from 2,000 to 50,800 steps per revolution
* Software selectable idle current reduction 0, 25%, 50% or 100%
* Eight optically isolated programmable inputs 5 24 VDC. 2,200 ohms internal resistance. Can be configured for sinking (NPN) or sourcing (PNP) signals.
* Three optically isolated programmable outputs 12 24 VDC, 100mA maximum
* One optically isolated output 5 VDC dedicated to fault out
* RS-232 for PC/MMI communications
* Over current and over temperature protection
* 440 watts of usable power
* Screw terminal connectors
* Dual, MOSFET H-bridge, 3 state, pulse width modulated amplifier switching at 20 30 KHz
* Ideal for 4, 6 or 8 leaded step motors NEMA sizes 23 & 34
* Optional Man Machine Interface (MMI) allows machine operator to enter specific motion parameters
* AMPLIFIER TYPE MOSFET, dual H-Bridge.
* CURRENT CONTROL 3 state, pulse width modulated, switching at 20 30 KHz.
* OUTPUT CURRENT 0.5-5.5 amps, software selectable.
* POWER SUPPLY Linear, toroidal transformer based for high reliability and low noise. 110 or 220 VAC input, switch selectable. 50/60 Hz.
* DC BUS VOLTAGE DC voltage at nominal line voltage: 75 VDC full load, 90 VDC no load.
* AC INPUT VOLTAGE 110 or 220 VAC (switch selectable) 50/60 Hz.
* MAXIMUM OUTPUT POWER 1440 Watts.
* IDLE CURRENT REDUCTION 0%, 25%, 50%, or 100% software selectable.
* MOTOR RESOLUTION 13 resolutions. Steps per revolution with 1.8 motor: 2000, 5000, 10000, 12800, 18000, 20000, 21600, 25000, 25400, 25600, 36000, 50000, 50800, software selectable.
* STATUS LED'S AC power (red) / Over Temperature (yellow) / Over Current (yellow)
* SERIAL COMMUNICATION RS-232 programming port.
* INPUTS 8 user programmable inputs. Can be used for triggering, sensing, homing, branching, jogging or limits. 5-24 VDC.
* OUTPUTS 3 general purpose, optically isolated 12 24 VDC outputs for interfacing to other equipment. Open collector and emitter. 100 mA max.
* PARAMETER RANGES Distance: 1 to 16,000,000 steps. Speed: .025 to 50 revolutions per second (in any microstep resolution). Acceleration: 1 to 3,000 rev/sec/sec. Deceleration: 1 to 3,000 rev/sec/sec (set independently from acceleration). Time Delays: 0.01 to 300 seconds. Output Pulse Widths: 2 to 500 milliseconds. Iterations per repeat loop: 1 to 65,535.
* OPTIONAL OPERATOR INTERFACE (MMI) NEMA 4/12 rated (splash proof & dust proof). 4 x 20 characters liquid crystal display (LCD)standard or backlit. 20 key membrane keypad. Overall size: 4.9 x 4.9 x 1.42 inches.
* OVERALL SIZE 3.0" x 5.3" x 8.0 "
* CHASSIS MATERIAL Aluminum, black anodized with integral heat sink.
* AMBIENT TEMPERATURE 0 to 50 C (32 to 122 F)
* HUMIDITY Maximum of 90% non-condensing.
* CONNECTORS Screw terminal connectors for input power and motor, and input/output signals.
* MOTORS Can drive 4, 6 or 8 lead motors, NEMA sizes 11, 14, 17, 23 & 34.
* CASE Steel with black paint and white epoxy silk screen. Includes switch covers.
* AGENCY APPROVAL CE & TUV.
