Loctite zeta 7750 programmable uv wand system 98046 fs

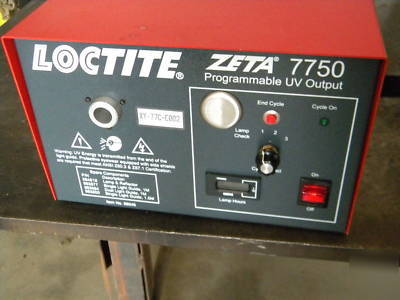

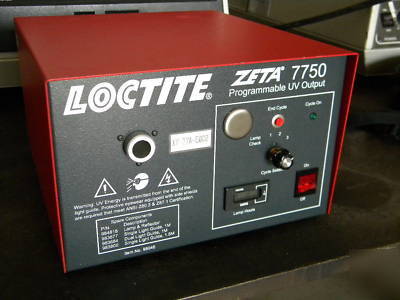

This Store Listing is for Loctite ZETA 7750 Programmable UV Wand System (No Wand) P/N 98046 with Footswitch
* Loctite ZETA 7750 Programmable UV Wand System (No Wand) P/N 98046
* This unit has no "Start Cycle" Button like other units have. But if you need the button, see my other listings for 2 Zeta 7750 units with the "Start Cycle" Button here..

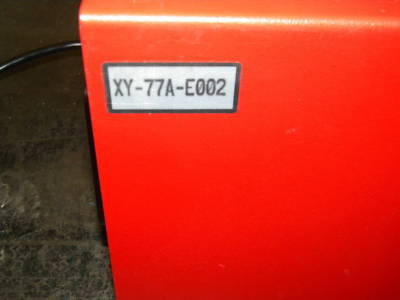

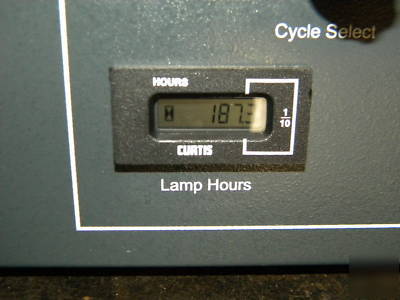

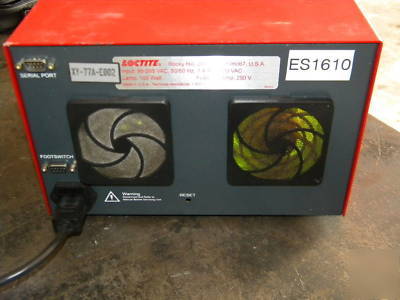

* S/N XY-77A-E002 has 187.3 Hours on the counter

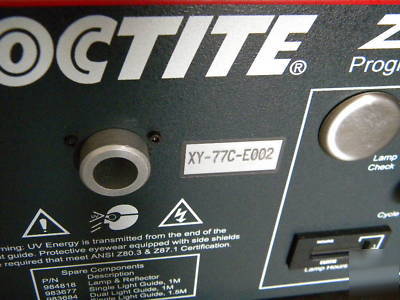

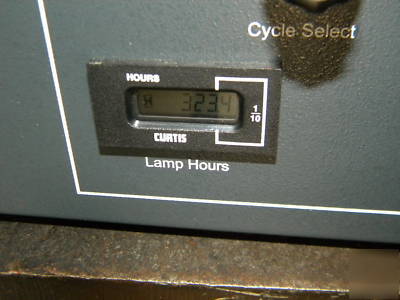

* S/N XY-77C-E002 has 323.4 Hours on the counter

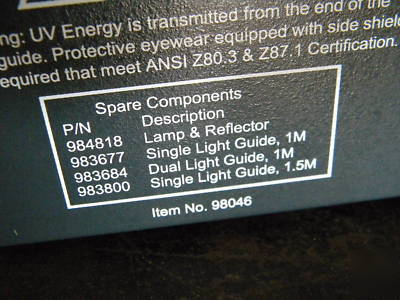

* Loctite Brand Light guides are sold separately by Loctite
* Loctite Zeta 7750 Software, Version 1.3, 12 /16/2002
* Brochure on the Loctite site
* Manual on the Loctite site
* Data sheet on the Loctite site
ZETA 7750 Programmable UV Wand System is a high intensity (10 W/cm2), programmable wand unit. Both the UV light intensity and the exposure time can be programmed to set the proper cure cycle. The cure cycle is selected by using the programming disc and a PC or laptop computer. The unit can store up to three separate programs. The UV output power can be varied in steps in a ramping mode or run at a continuous intensity. The exposure cycle is started by pressing either the foot switch or the start cycle button, located on the front panel. For automated assembly process, the wand system can be integrated with an external device such as a PLC. The liquid-filled light guides are sold separately from the base unit for selection based on individual requirements.
UV range of adjustment: 2 to 10 W/cm2
Stores up to three separate cure sequences
Equipped with a lamp check switch, allowing for quick, easy and repeatable means to measure UV output
Allows three options for UV output modes:
* Constant UV output - no change, just input the exposure time
* Step sequence - UV exposure stops momentarily between changes in the UV output
* Ramp sequence - UV exposure continues as the UV output changes

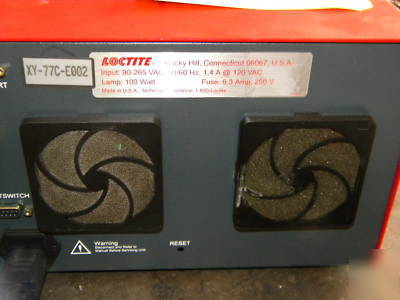

* Power Supply: 120 VAC/60 Hz input
* Power Protection: 4 A/250 V fuse
* Auxiliary Control Voltage: 24 VDC
* Size: 11.0" W x 12.5" D x 7.6" H
* Light Source High-pressure 100 Watt mercury arc
* Lamp Life Approximately 2,000 hours
* Initial Output Selectable, approximately 2 to 10 W/cm
* (1000 mm long x 5 mm diameter light guide)*
* UV Spectral Range UVA (320 to 400 nm) 62%
* (250-400 nm) UVB (280 to 320 nm) 27%
* Secondary Peaks: 315, 335 nm
*Exact output measurement is dependent on the brand and calibration method of the UV meter used.
