CD4025, cmos triple 3-input nor gate, qty 40

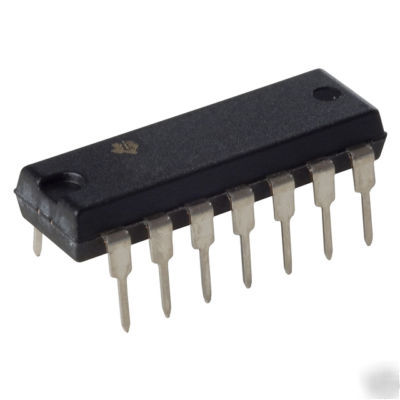

CD4025BE, CMOS Triple 3-Input NOR Gate, 14 Pin DIP, Quantity 40, Texas Instruments.
CD4025BE NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
* Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
* Buffered inputs and outputs
* Standardized symmetrical output characteristics
* 100% tested for maximum quiescent current at 20 V
* 5-V, 10-V, and 15-V parametric ratings
* Maximum input current of 1 A at 18 V over full package-temperature range; 100 nA at 18 V and 25 C
* Noise margin (over full package temperature range):
Click here to see the datasheet.
Quantity 40 ..... New Parts !!!!!
