Tektronix P6201 900MHZ active fet probe

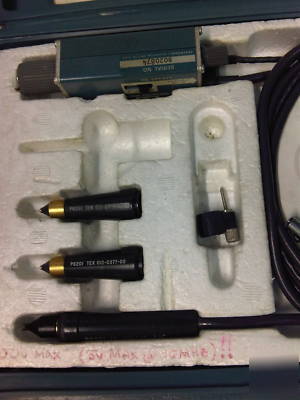

Tektronix P6201 Active FET Probe The Tektronix P6201 Active FET Probe provides unity gain (1X) and is the best general purpose FET probe within its voltage range. Plug-on attenuator heads provide wider dynamic ranges (10X and 100X), while maintaining the oscilloscope readout factor. True Signal Fidelity, DC up to 900 MHz 1.5 pF Input C*1 1 megaohm Input R*1 1X/10X/100X AC-DC Coupling Variable DC Offset, up to 200 V Selectable 50 Ohm, Termination for Use with 50 Ohm or 1 megaohm Inputs Digital Design and Debug of Logic Families Component Characterization/Measurement of High-speed Analog Circuitry Digital Design and Debug of Logic Families such as: ECL GaAs MOS: CMOS; FastCMOS; BiCMOS TTL Component Characterization/Measurement of High-speed Analog Circuitry Relative to: Amplitude Levels Aberrations Propagation Delay and Timing Bandwidths and Rise Times The kit appears to have all main probe headsand accessories except for the spring loaded hooked tip which is missing.There is even a pack of spare probe tips in the case.
