> Bodine brushless dc gearmotor 34B3BEBL-E4 1/5 130V

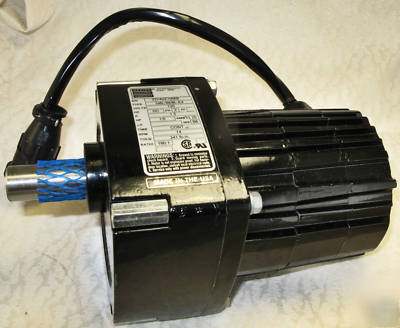

Bodine brushless dc gearmotor 34B3BEBL-E4 1/5 130V
Bodine Parallel Shaft Brushless DC Motor 34B Series
Volts: 130 Hz: DC PH: 3 A: 15 HP: 1/5 AMB C: 25 INS: B6 Time: CONT RPM: 14
TORQ: 341 lb-in. Ratio: 180:1 Radial Load: 200 LBS Length XH (inch): 6.689 Weight: 11 LBS Peak Torque (lb-in): 475 24 Volt Winding: 9.6 130 Volt Winding: 1.6
* Brushless motor for high torque, smaller size and no maintenance
* Vented gearhousing for extended seal life
* Industrial lip type seals on motor and output shafts
* Needle bearings throughout for increased radial load capacity and long life
* Permanently lubricated gearing utilizing semi-fluid grease for long life
* Selectively hardened all steel helical gearing for quietness and high output to size ratio
* Brushless motors require a control
* Performance ratings of 115 C winding, 25 C ambient, and no heat sink
