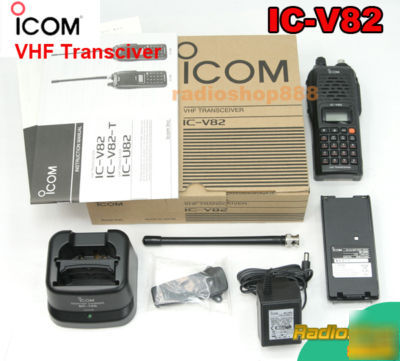

Icom ic V82 vhf hand held two way radio 7 watts
ICOM IC-V82 VHF FM Transceiver 136-174
The optional UT-118 provides D-STAR format digital voice and slow data communication. The UT-118 includes the following digital features(*The UT-118 is not include in this set).
* 20-character short data message
A powerful 7W output power provides superior transmit power. All this power is available with the supplied battery pack. Reduced power settings also allow you to adapt to the communication conditions and provide longer operating time.
200 memory channels and 10 memory banks
Up to 200 regular memory channels can be stored with a 6-character channel name, tone and duplex settings. The memory channels can be tagged with A-J bank name and allows you easy channel management. In addition, use Icom s exclusive DMS (Dynamic Memory Scan) system to scan selected memory banks by simply adding and deleting bank links.
Built-in CTCSS/DTCS tone codes provide quiet stand-by and allowyou to access a closed repeater. The pocket beep alerts you when a matched tone frequency is received. The tone scan detects the tone frequency used in the receiving frequency.
CTCSS and DTCS Operation Standard
50 CTCSS and 104 2 DTCS tone squelch operation codes (encode and decode) provide quiet standby and allow you repeater access. A pocket beep alerts you of a call and a tone scan can detect the sub-audible tone in use in the receiving signals.
Standard DTMF Encoder and Optional DTMF Decoder
5 DTMF memory channels with up to 24 DTMF codes allow remote operation. The optional UT-108 DTMF decoder unit provides code squelch operation as well as a pager function.
Tx: 136-174 MHz Rx:136-174 MHz
: F3E, F2D, [F7W optional]
: 207 (6 scan edges, 1 call)
: 7.2 V DC (6.0 10.3V DC acceptable, Icom's battery pack only)
Current drain (at 7.2 V DC)
: -10 C to +60 C; +14 F to +140 F
(projections not included)
: 54(W) 139(H) 36.7(D) mm
21 8(W) 515 32(H) 17 16(D)in.
: 390g; 13.8oz (with BP-222N)
Output power (at 7.2 V DC)
: 5 kHz/ 2.5 kHz (Wide/Narrow)
: 3-conductor 2.5(d) mm (1 10 )/2.2k ohm
: Double-conversion super heterodyne
Sensitivity (at 12dB SINAD)
Squelch sensitivity (at threshold)
: more than 55/50dB (Wide/Narrow) typ.
Spurious and Image rejection
: 300 mW typ. with an 8 ohm load
: 3-connector 3.5 (d) mm (1/8")/8 ohm
: 3-connector 2.5 (d) mm(1/10")
Applicable U.S. Military Specifications Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
