> Microchip pic 12F683 flash-based 8-bit cmos 8 pin dil

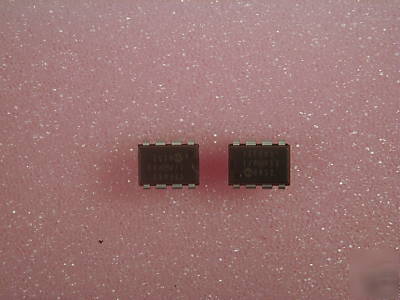

Microchip pic 12F683 flash-based 8-bit cmos 8 pin dil
Only 35 instructions to learn:
- All single-cycle instructions except branches
- DC 20 MHz oscillator/clock input
- DC 200 ns instruction cycle
Direct, Indirect and Relative Addressing modes
Special Microcontroller Features:
Precision Internal Oscillator:
- Factory calibrated to 1%, typical
- Software selectable frequency range of 8 MHz to 125 kHz
- Crystal fail detect for critical applications
- Clock mode switching during operation for power savings
Wide operating voltage range (2.0V-5.5V)
Industrial and Extended temperature range
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Brown-out Reset (BOR) with software control option
Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable
Multiplexed Master Clear with pull-up/input pin
Programmable code protection
High Endurance Flash/EEPROM cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/Data EEPROM Retention: > 40 years
- 11 A @ 32 kHz, 2.0V, typical
- 220 A @ 4 MHz, 2.0V, typical
6 I/O pins with individual direction control:
- High current source/sink for direct LED drive
- Ultra Low-Power Wake-up on GP0
Analog Comparator module with:
- Programmable on-chip voltage reference (CVREF) module (% of VDD)
- Comparator inputs and output externally accessible
- 10-bit resolution and 4 channels
Timer0: 8-bit timer/counter with 8-bit programmable prescaler
- 16-bit timer/counter with prescaler
- External Timer1 Gate (count enable)
- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
Capture, Compare, PWM module:
- 16-bit Capture, max resolution 12.5 ns
- Compare, max resolution 200 ns
- 10-bit PWM, max frequency 20 kHz
In-Circuit Serial Programming (ICSP ) via two pins
The device is an 8-pin Dual-In-Line package.
This device is CMOS, therefore it is static sensitive.
**FREE POSTAGE ON EACH ADDITIONAL IC**
All orders are fully compensated for.
You can order as many adapters as we have in stock from this listing and any other listing, yet still only pay for the cost of postage for the first adaptor. This is because the adaptors weight is almost negligible, and thus the increase in postage cost is very tiny compared to the combined value of all adapters ordered; basically we pay the additional cost!
**PLEASE NOTE THAT WE DO NOT POST TO ITALY, DUE TO THE HIGH VOLUME OF POST THAT 'GOES MISSING'**
