> Agilent hp 55281A angular optics kit 10771A 10770A
Agilent hp 55281A angular optics kit 10771A 10770A
Agilent HP 55281A Angular Optics Kit 10771A 10770A

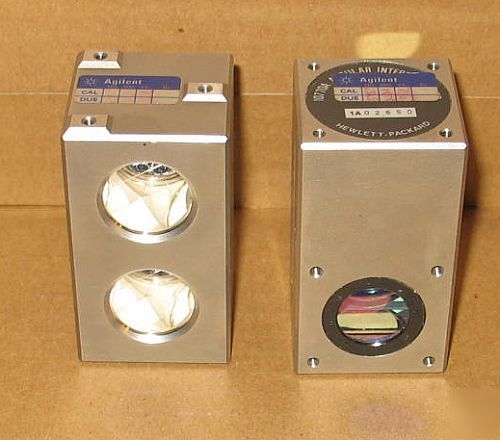

This Angular Optics Kit adds pitch and yaw measurement capability to the 5529A Laser Measurement System.
Together the high accuracy plane mirror interferometer and the angular reflector measure pitch and yaw motions along each axis that a machine tool or measuring machine travels.
This unit can help quickly locate and evaluate unwanted angular motion.
Used as a powerful diagnostic tool, this unit helps find the causes of linear positioning errors information that is critical in making replace or rebuild decisions for older machine tools.
Agilent / HP 55281A Applications:
11mm (0.43 in) beam separation.
High 0.1 arc second resolution.
Range of up to 36000 arc seconds ( 10 ).
Last Calibration by Agilent 6/04
