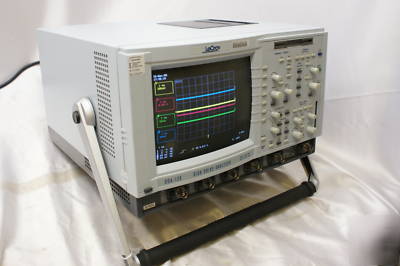

Lecroy dda-120 4 channel 8GS 1GHZ oscilliscope LC584AL

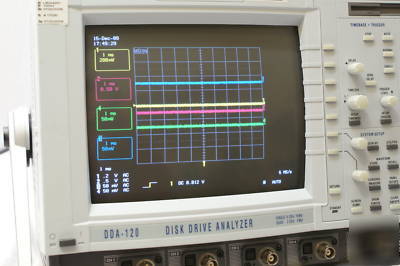

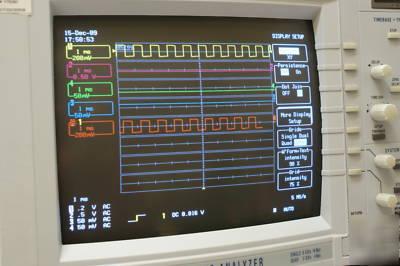

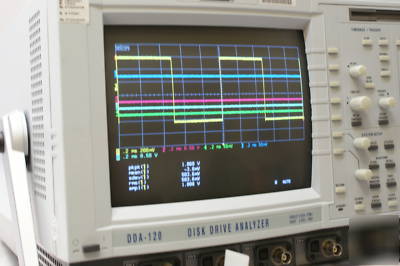

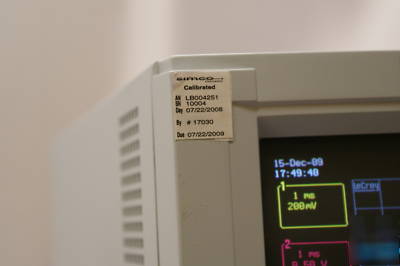

All channels read signal good and function correctly. Calibration due Date 7/22/2009

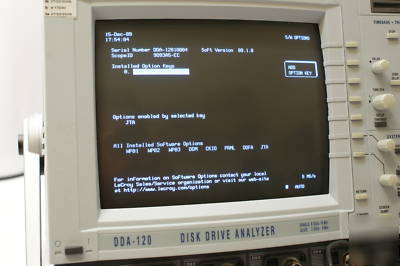

- WP01: advanced waveform math package
- WP02: spectrum analysis package
- WP03: parameter analysis package
- DDM: disk drive measurements
- PRML: supplementary disk drive measurements
- DDFA: disk drive failure analysis
- JTA: Jitter and Timing Analysis
- CLBZ: Piezo Buzzer Alarm Installed

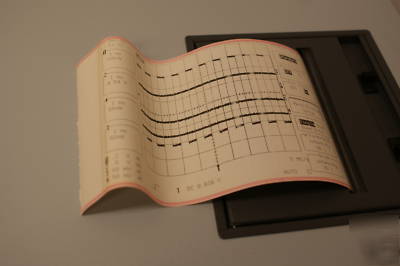

- GP01: Internal graphics printer

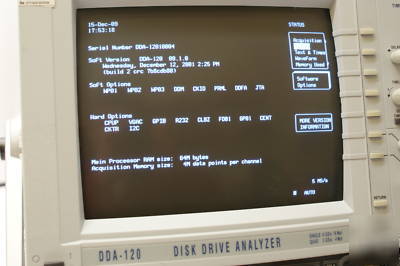

Main processor Ram size: 64M bytes
Acquisition Memory Size: 4M data points per channel
Auto,Edge,Normal,Pulse,Single,Slope,Stop,TV
User manual for a Lecroy LC series Digital Oscilloscope. http:// /objects/catalog/product/extras/1575_LECROY_LCSERIES.pdf
