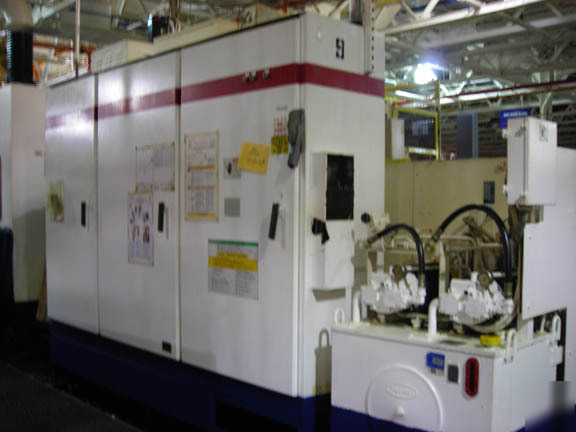

Toyoda fh-60B 4 axes pallet cnc horiz mach center fanuc
TOYODA MODEL FH-60B 4 AXES PALLET TYPE CNC
A new machine of this quality and size would be in excess of $360,000.00 USD.
and it would put you ahead of the competition for a like machine costing
your competitor considerably more.
(2) Pallets: 24 3/4" x 24 3/4"
Pallet Height From Floor Level: 43.31"
Work Table Lateral Travel (X): 39.37"
Infinitely Variable Geared Head Spindle Speeds: 15-5,000
Spindle Head Vertical Travel (Y): 31.50, (Distance
Between Spindle Center And Pallet Top Surface:
Column Cross Travel (Z): 29.53", (Distance Between
Spindle Nose And Table Center: 6.89"-36.42")
Rapid Feed Rate: X, Y And Z Axes: 15,000 mm/min.
Cutting Feed Rate: X, Y And Z Axes: 1-5,400 deg./
min. NC Indexing, B Axis 1-15,000
Tool Size (Dia. x Length): 4.72" x 15.75"
Tool Changing Time (Tip-To-Tip): 10 Sec. (In Case
Maximum Load On Pallet: 2,645 Lbs.
4 Axes: X, Y, Z And B (Table Rotates
GE Fanuc Series 15-M CNC Control
48 Station Automatic Tool Changer, Random Selection
Copy of Specification Manual For FH60 And Parts
It came from service and should go right back to service for you.
Fanuc Control anywhere in the world
Approximate Dimensions Of Machine: 25' 8" L x 128" W x 142" H
Approximate Dimensions Of Hydraulic Filtration Unit: 61" L x 29" W x 54" H
Approximate Dimensions Of Tank "A": 51" L x 47" W x 72" H
Approximate Dimensions Of Tank "B": 32" L x 31" W x 37" H
Approximate Dimensions of Skid With Way Covers And Cooler: 40" L x 47" W x 28" H
Approximate Catalog Weight: 30,844 Lbs.
Specifications subject to verification.
