Eip 578 source locking microwave frequency counter

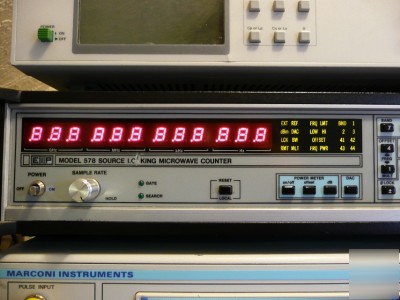

EIP 578 Source Locking Microwave Frequency Counter
EIP Model 578 Source Locking Microwave Frequency Counter.
10Hz to 26.5GHz up to 110GHz with suitable Mixer.
The Unit is in fully working and Tested
The Counter is fitted with the RF Power Meter Option.
I have used this to frequency Lock my HP 8350B Sweep oscillator and others..
The 578 features a 12 digit, sectionalized LED display for ease of viewing and -25 dBm sensitivity from 1 -to 20 GHz. An IEEE-488 interface is standard. The 578 are not only able to perform frequency measurements but can tune and phase lock an external signal source over a wide range of frequencies. This EIP microwave frequency counters provides fully automatic source locking of virtually any electronically tunable source to the same accuracy and long term stability as the time base oscillator in the counter or it s external reference input The ability of the 578 to accurately set and stabilize the frequency of a source generator often eliminates the need for an expensive, synthesized signal generator.??
Weight: 26 lb; Size: 89 mm (3.5 in)H x 425 mm (16.75 in)W x 356 mm (14.0 in)D
http:// /Spec_Sheets/57XB_10-99.pdf
