Ilx lightwave mps-8033 fiber optic source 1560NM dfb
ILX Lightwave MPS-8033 Fiber Optic Source 1560nm DFB Used
Model/Part No:MPS-8033 Our Item ID: 6105

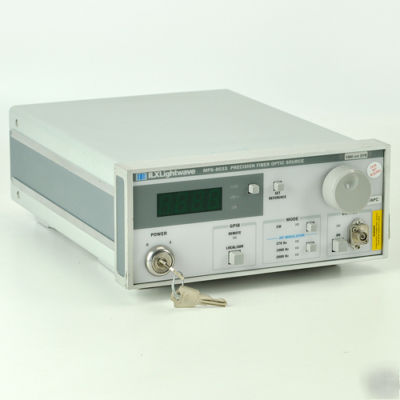

Includes(1) ILX Lightwave MPS-8033 Precision Fiber Optic Source 1560nm DFB as pictured.A12
ILX Lightwave MPS-8033 Precision Fiber Optic Source 1560nm DFB Unit powers on and appears in good condition. FC/APC Connector style.
Model MPS 8033/01 06, MPS 8033/C1 or C2, and MPS 8033/L1 or L2 series fiber optic sources are micro processor controlled laser diode sources that provide up to 20 mW of power at user specified wavelengths including DFB lasers in the WDM C Band and L Band wavelengths plus 850, 980, 1310, 1480, and 1550 nm Fabry Perot lasers. These sources are well suited for exacting laboratory and production automated test and measurement applications. These include active and passive component testing for high precision IL and ORL measurements, environmental testing, and power meter and detector calibration. Instrument features include user adjustable light power output and internal modulation frequencies selected via front panel or remotely. High output stability for all options is achieved by using ILX Lightwave s proven laser diode current and temperature control technology. Each MPS 8033 comes with a standard GPIB interface and to close the loop with other lab measurement instruments, the instrument provides a TTL compatible trigger which is synchronized with the output of the internally modulated signal.
Item Tested?: Partially TestedPhysical Condition: Good; Working Condition: Not Fully Test, but Powers Up15 | 18x 12x12 | 1
