Esi laser spectra physics 7300 laser diode pumped rail

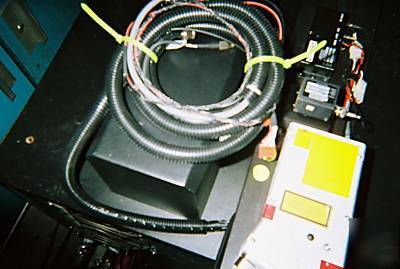

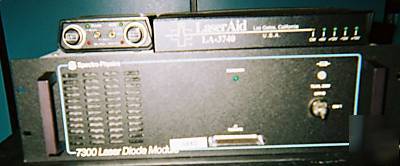

SPECTRA PHYSICS 7300 LASER DIODE MODULE , LASER AID LA-3740 COMPLETE RAIL -Q switched JUST OUT OF A ESI MODEL 8000C LASER TRIMMING SYSTEM. GOOD WORKING CONDITION - OPERATIONAL and Service MANUAL INCLUDED.all wire harness in tact.
Model 7300 Industrial diode pumped laser
Model 7960 Laser Head ( Q switched)
The fiber optic cable is with the system
continuous wave (CW) - just turn off RF driver
RF driver provides up to 3 w of power
the up-collimator adjusting frame is attached to the end of the rail - the up collimator it self is not included.
the rail is beam aligned with the Q switch - and was laser trimming thick and thin film products.

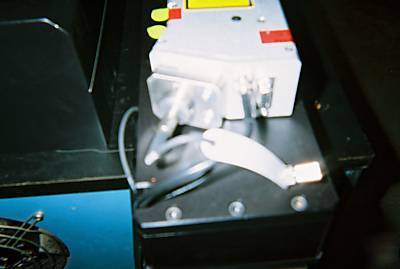

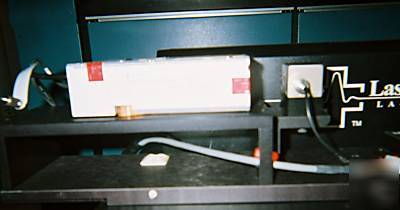

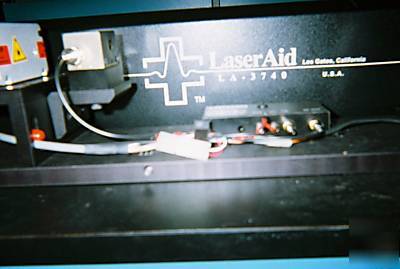

The laser head is attached to the rail along with the Q switch, please see pics 4 & 5 showing details regarding this, nothing was detached from rail, rail base was unbolted and complete assembly removed.
S/W SETTING OUTPUT (MW) @ 512 HZ
Diode 1 hours =1E4 PWR/MW =0.49 CURRENT/MA = 1.13 TMP/DEGREE = 18.1
Diode 2 hours =1E4 PWR/MW=0.50 CURRENT/MA = 1.16 TMP/DEGREE = 15.9
